6.6 Nickel
119
E L (2p 3/2 )
Ni E L (2p 1/2 )
Intensity (a.u.)
E(eV)
7.5 ML
5.0 ML
2.5 ML
2.0 ML
1.5 ML
1.0 ML
0.5 ML
E(eV)
7.5 ML
E k (eV)
E K (LMM)
Intensity (a.u.)
5.0 ML
2.5 ML
2.0 ML
1.5 ML
1.0 ML
0.5 ML
872
870
868
856
854
852
852
848
844
840
3
2
1
0
- 1
E(eV)
E M (3d 5/2 )
(a)
(b)
(c)
(d)

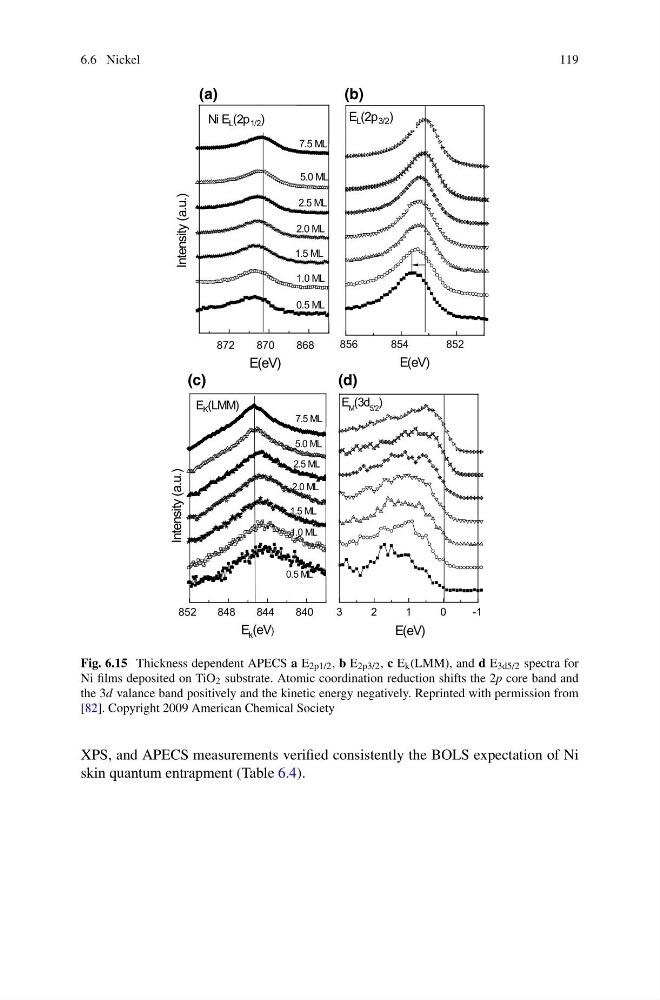

Fig. 6.15 Thickness dependent APECS a E 2p1/2 , b E 2p3/2 , c E k (LMM), and d E 3d5/2 spectra for
Ni films deposited on TiO 2 substrate. Atomic coordination reduction shifts the 2p core band and
the 3d valance band positively and the kinetic energy negatively. Reprinted with permission from
[82]. Copyright 2009 American Chemical Society
XPS, and APECS measurements verified consistently the BOLS expectation of Ni
skin quantum entrapment (Table 6.4).
119
E L (2p 3/2 )
Ni E L (2p 1/2 )
Intensity (a.u.)
E(eV)
7.5 ML
5.0 ML
2.5 ML
2.0 ML
1.5 ML
1.0 ML
0.5 ML
E(eV)
7.5 ML
E k (eV)
E K (LMM)
Intensity (a.u.)
5.0 ML
2.5 ML
2.0 ML
1.5 ML
1.0 ML
0.5 ML
872
870
868
856
854
852
852
848
844
840
3
2
1
0
- 1
E(eV)
E M (3d 5/2 )
(a)
(b)
(c)
(d)
Fig. 6.15 Thickness dependent APECS a E 2p1/2 , b E 2p3/2 , c E k (LMM), and d E 3d5/2 spectra for
Ni films deposited on TiO 2 substrate. Atomic coordination reduction shifts the 2p core band and
the 3d valance band positively and the kinetic energy negatively. Reprinted with permission from
[82]. Copyright 2009 American Chemical Society
XPS, and APECS measurements verified consistently the BOLS expectation of Ni
skin quantum entrapment (Table 6.4).
