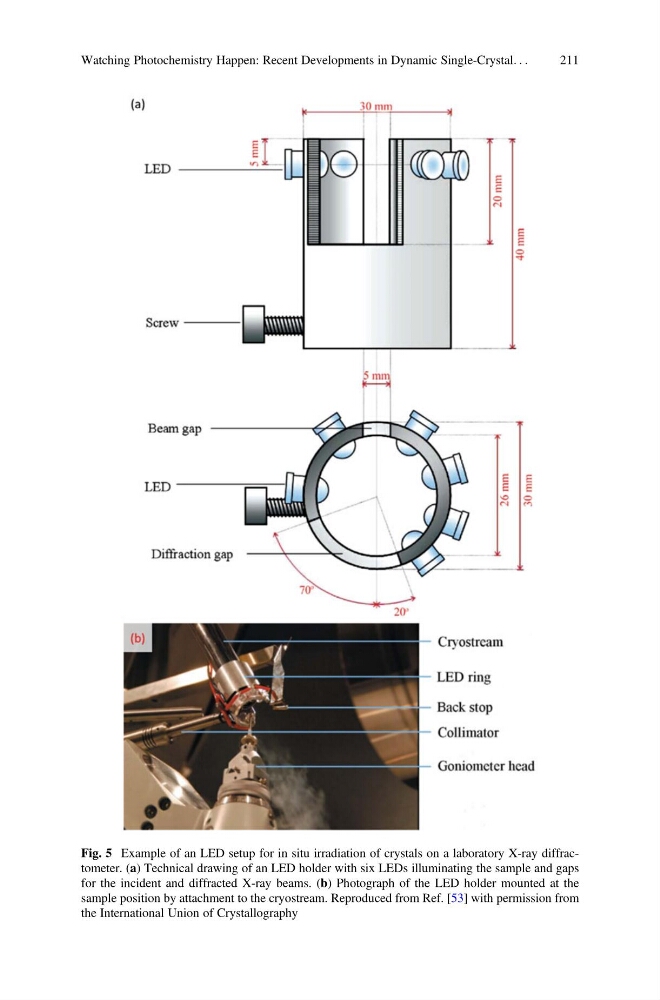

Fig. 5 Example of an LED setup for in situ irradiation of crystals on a laboratory X-ray diffractometer. (a) Technical drawing of an LED holder with six LEDs illuminating the sample and gaps
for the incident and diffracted X-ray beams. (b) Photograph of the LED holder mounted at the
sample position by attachment to the cryostream. Reproduced from Ref. [53] with permission from
the International Union of Crystallography
