11 Application of Accelerators and Storage Rings
713

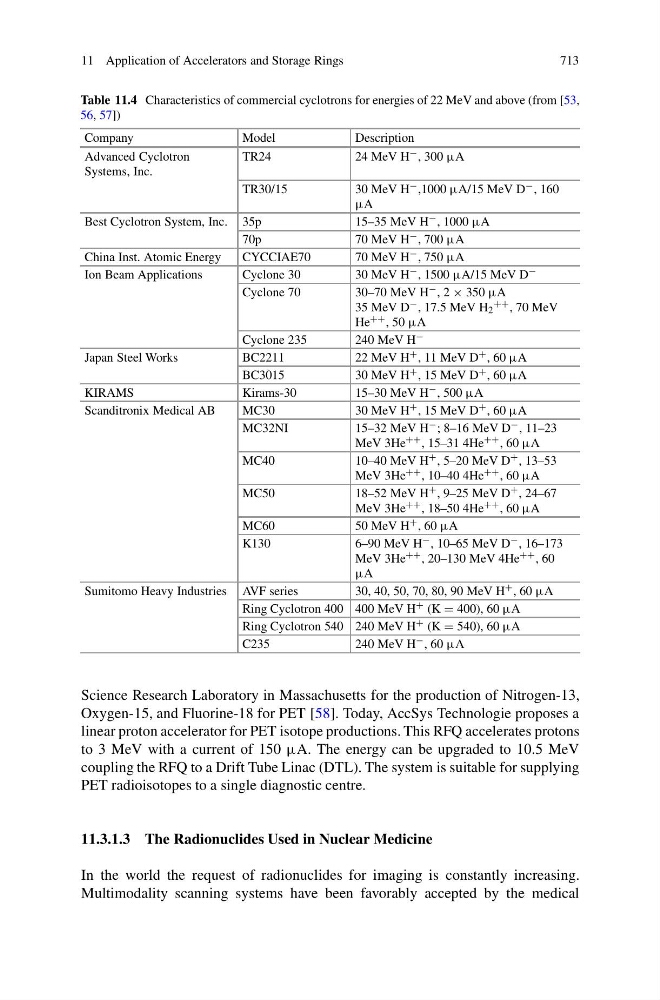

Table 11.4 Characteristics of commercial cyclotrons for energies of 22 MeV and above (from [53,
56, 57])
Company
Model
Description
Advanced Cyclotron
Systems, Inc.
TR24
24 MeV H − , 300 μA
TR30/15
30 MeV H − ,1000 μA/15 MeV D − , 160
μA
Best Cyclotron System, Inc. 35p
15–35 MeV H − , 1000 μA
70p
70 MeV H − , 700 μA
China Inst. Atomic Energy
CYCCIAE70
70 MeV H − , 750 μA
Ion Beam Applications
Cyclone 30
30 MeV H − , 1500 μA/15 MeV D −
Cyclone 70
30–70 MeV H − , 2 × 350 μA
35 MeV D − , 17.5 MeV H 2
++ , 70 MeV
He ++ , 50 μA
Cyclone 235
240 MeV H −
Japan Steel Works
BC2211
22 MeV H + , 11 MeV D + , 60 μA
BC3015
30 MeV H + , 15 MeV D + , 60 μA
KIRAMS
Kirams-30
15–30 MeV H − , 500 μA
Scanditronix Medical AB
MC30
30 MeV H + , 15 MeV D + , 60 μA
MC32NI
15–32 MeV H − ; 8–16 MeV D − , 11–23
MeV 3He ++ , 15–31 4He ++ , 60 μA
MC40
10–40 MeV H + , 5–20 MeV D + , 13–53
MeV 3He ++ , 10–40 4He ++ , 60 μA
MC50
18–52 MeV H + , 9–25 MeV D + , 24–67
MeV 3He ++ , 18–50 4He ++ , 60 μA
MC60
50 MeV H + , 60 μA
K130
6–90 MeV H − , 10–65 MeV D − , 16–173
MeV 3He ++ , 20–130 MeV 4He ++ , 60
μA
Sumitomo Heavy Industries AVF series
30, 40, 50, 70, 80, 90 MeV H + , 60 μA
Ring Cyclotron 400 400 MeV H + (K = 400), 60 μA
Ring Cyclotron 540 240 MeV H + (K = 540), 60 μA
C235
240 MeV H − , 60 μA
Science Research Laboratory in Massachusetts for the production of Nitrogen-13,
Oxygen-15, and Fluorine-18 for PET [58]. Today, AccSys Technologie proposes a
linear proton accelerator for PET isotope productions. This RFQ accelerates protons
to 3 MeV with a current of 150 μA. The energy can be upgraded to 10.5 MeV
coupling the RFQ to a Drift Tube Linac (DTL). The system is suitable for supplying
PET radioisotopes to a single diagnostic centre.
11.3.1.3 The Radionuclides Used in Nuclear Medicine
In the world the request of radionuclides for imaging is constantly increasing.
Multimodality scanning systems have been favorably accepted by the medical
