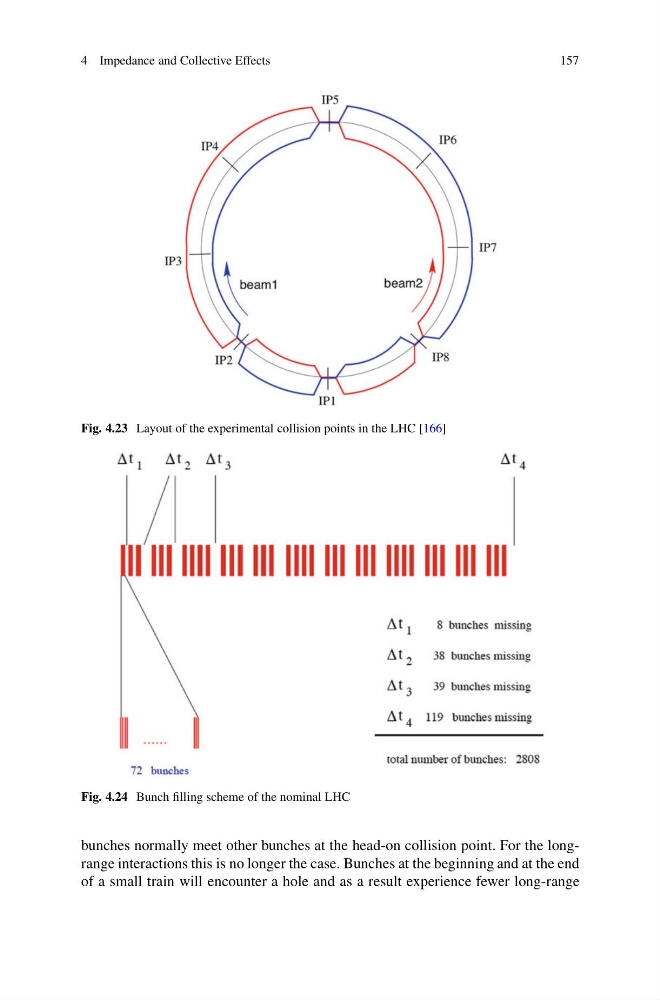

Fig. 4.23 Layout of the experimental collision points in the LHC [166]
Fig. 4.24 Bunch filling scheme of the nominal LHC
bunches normally meet other bunches at the head-on collision point. For the longrange interactions this is no longer the case. Bunches at the beginning and at the end
of a small train will encounter a hole and as a result experience fewer long-range
