36
H. K. Timken et al.

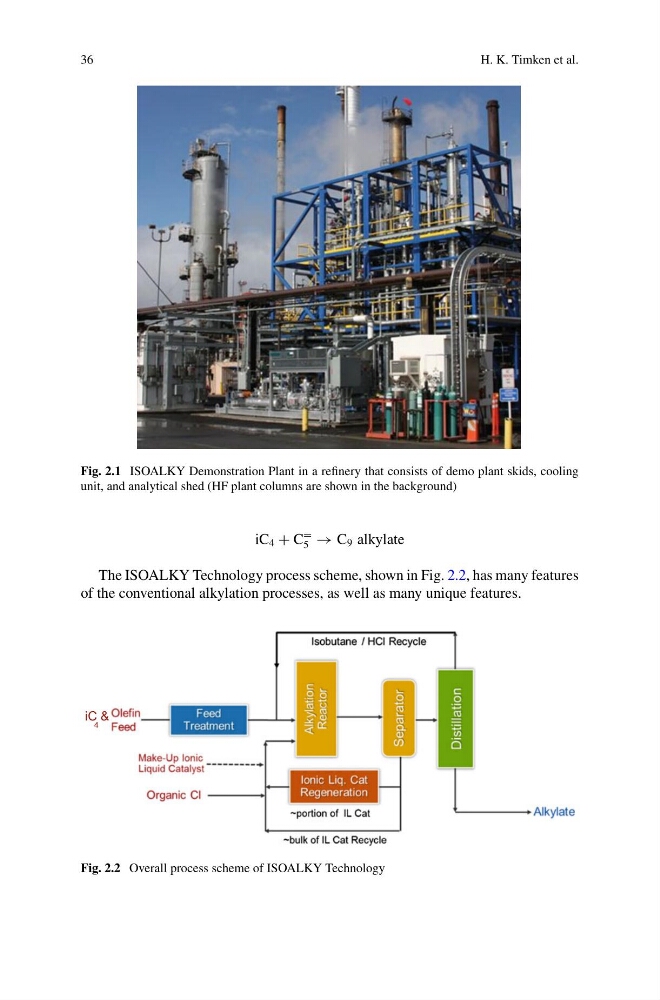

Fig. 2.1 ISOALKY Demonstration Plant in a refinery that consists of demo plant skids, cooling
unit, and analytical shed (HF plant columns are shown in the background)
iC 4 + C
=
5 → C 9 alkylate
The ISOALKY Technology process scheme, shown in Fig. 2.2, has many features
of the conventional alkylation processes, as well as many unique features.
iC
4
&
Fig. 2.2 Overall process scheme of ISOALKY Technology
