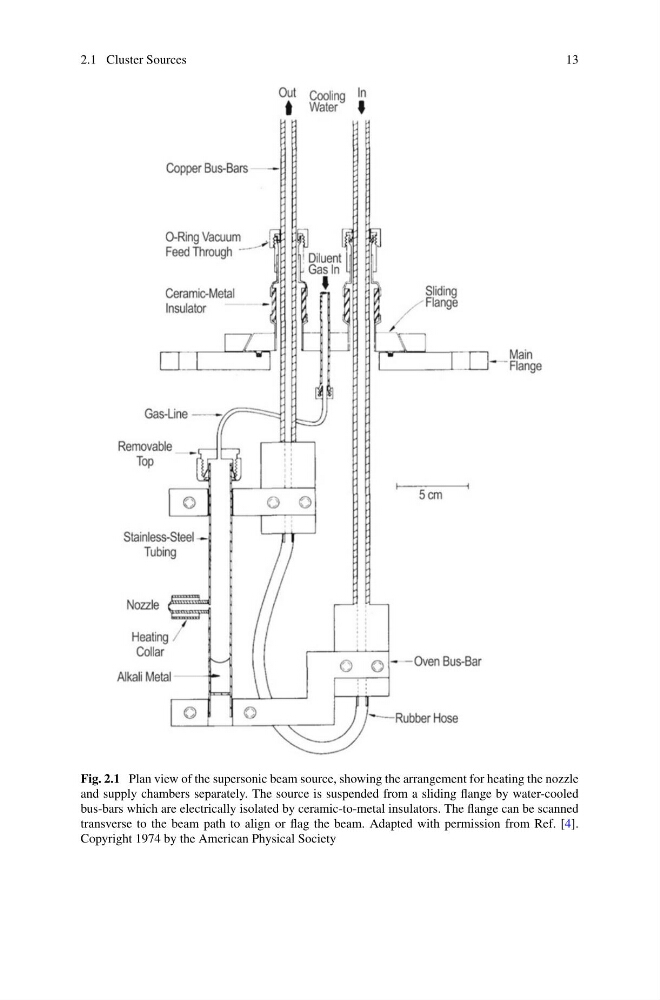

Fig. 2.1 Plan view of the supersonic beam source, showing the arrangement for heating the nozzle
and supply chambers separately. The source is suspended from a sliding flange by water-cooled
bus-bars which are electrically isolated by ceramic-to-metal insulators. The flange can be scanned
transverse to the beam path to align or flag the beam. Adapted with permission from Ref. [4].
