Any sharp prominence may result in a spot where the film thickness will
be inadequate and noncontinuous, thus causing premature failure.
If possible, avoid the use of bolted joints. Should it be necessary to use a
bolted joint, it should be made of corrosion-resistant materials and sealed
shut. The mating surface of steel surfaces should be gasketted. The lining
material should be applied prior to bolting.
Do not use construction that will result in the creation of pockets or crevices that will not drain or that cannot be properly sandblasted and lined
(Figure 6.3).
All joints must be continuous and solid welded. All welds must be smooth
with no porosity, holes, high spots, lumps, or pockets (Figure 6.4).
DON’T
Weld flux
Weld spatter
Clean
Grind smooth
DO

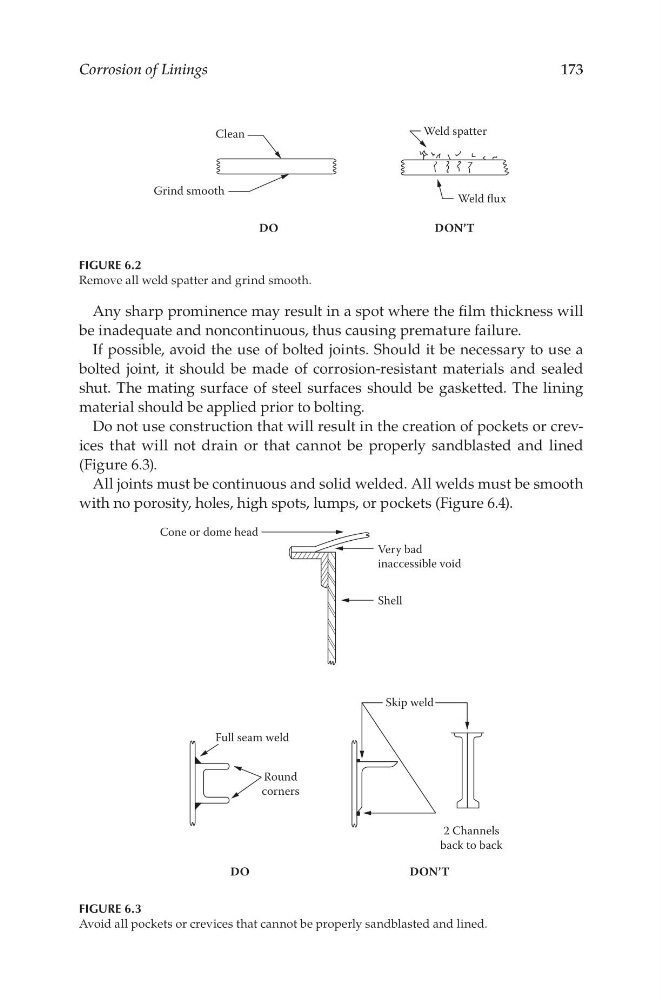

FigurE 6.2
Remove all weld spatter and grind smooth.
Very bad
inaccessible void
Cone or dome head
Shell
Skip weld
2 Channels
back to back
Round
corners
Full seam weld
DON’T
DO
FigurE 6.3
Avoid all pockets or crevices that cannot be properly sandblasted and lined.
