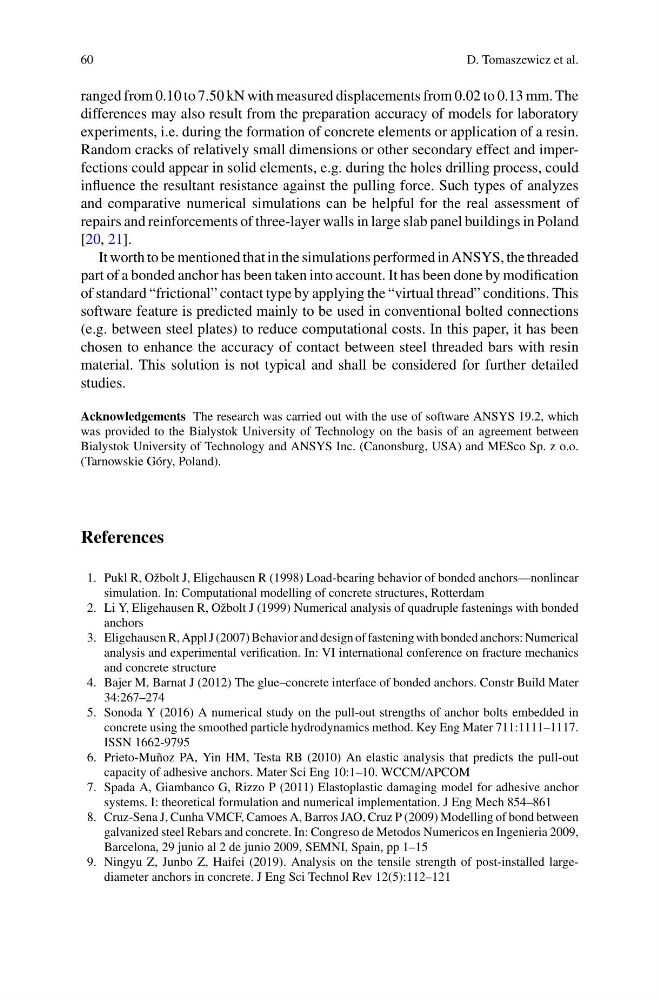

60
D. Tomaszewicz et al.
ranged from 0.10 to 7.50 kN with measured displacements from 0.02 to 0.13 mm. The
differences may also result from the preparation accuracy of models for laboratory
experiments, i.e. during the formation of concrete elements or application of a resin.
Random cracks of relatively small dimensions or other secondary effect and imperfections could appear in solid elements, e.g. during the holes drilling process, could
influence the resultant resistance against the pulling force. Such types of analyzes
and comparative numerical simulations can be helpful for the real assessment of
repairs and reinforcements of three-layer walls in large slab panel buildings in Poland
[20, 21].
It worth to be mentioned that in the simulations performed in ANSYS, the threaded
part of a bonded anchor has been taken into account. It has been done by modification
of standard “frictional” contact type by applying the “virtual thread” conditions. This
software feature is predicted mainly to be used in conventional bolted connections
(e.g. between steel plates) to reduce computational costs. In this paper, it has been
chosen to enhance the accuracy of contact between steel threaded bars with resin
material. This solution is not typical and shall be considered for further detailed
studies.
Acknowledgements The research was carried out with the use of software ANSYS 19.2, which
was provided to the Bialystok University of Technology on the basis of an agreement between
Bialystok University of Technology and ANSYS Inc. (Canonsburg, USA) and MESco Sp. z o.o.
(Tarnowskie Góry, Poland).
References
1. Pukl R, Ožbolt J, Eligehausen R (1998) Load-bearing behavior of bonded anchors—nonlinear
simulation. In: Computational modelling of concrete structures, Rotterdam
2. Li Y, Eligehausen R, Ožbolt J (1999) Numerical analysis of quadruple fastenings with bonded
anchors
3. Eligehausen R, Appl J (2007) Behavior and design of fastening with bonded anchors: Numerical
analysis and experimental verification. In: VI international conference on fracture mechanics
and concrete structure
4. Bajer M, Barnat J (2012) The glue–concrete interface of bonded anchors. Constr Build Mater
34:267–274
5. Sonoda Y (2016) A numerical study on the pull-out strengths of anchor bolts embedded in
concrete using the smoothed particle hydrodynamics method. Key Eng Mater 711:1111–1117.
ISSN 1662-9795
6. Prieto-Muñoz PA, Yin HM, Testa RB (2010) An elastic analysis that predicts the pull-out
capacity of adhesive anchors. Mater Sci Eng 10:1–10. WCCM/APCOM
7. Spada A, Giambanco G, Rizzo P (2011) Elastoplastic damaging model for adhesive anchor
systems. I: theoretical formulation and numerical implementation. J Eng Mech 854–861
8. Cruz-Sena J, Cunha VMCF, Camoes A, Barros JAO, Cruz P (2009) Modelling of bond between
galvanized steel Rebars and concrete. In: Congreso de Metodos Numericos en Ingenieria 2009,
Barcelona, 29 junio al 2 de junio 2009, SEMNI, Spain, pp 1–15
9. Ningyu Z, Junbo Z, Haifei (2019). Analysis on the tensile strength of post-installed largediameter anchors in concrete. J Eng Sci Technol Rev 12(5):112–121
