Pull-Out Tests and Numerical Simulations …
55

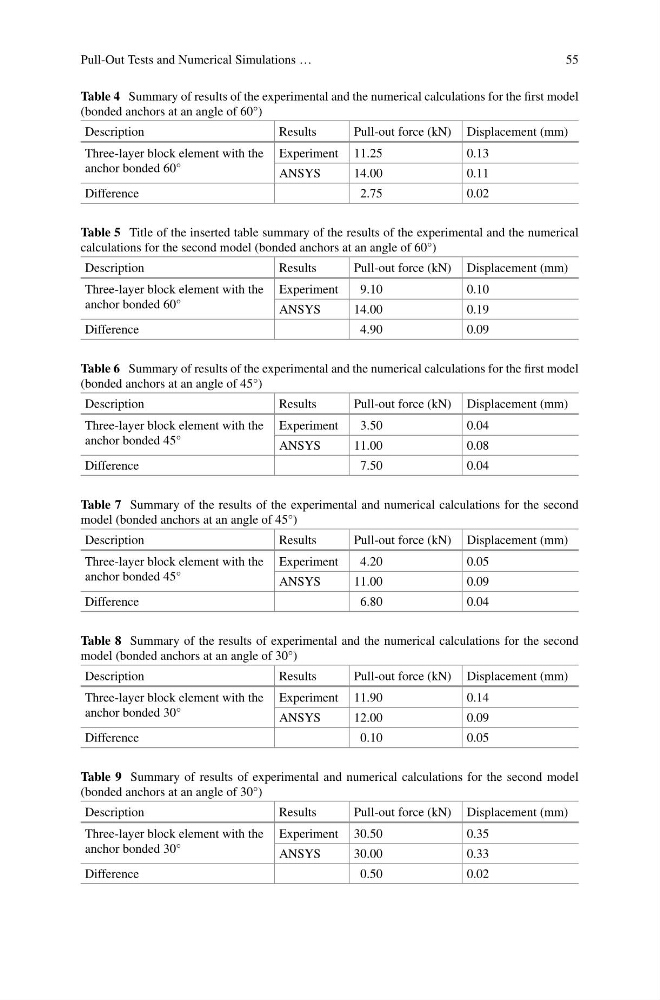

Table 4 Summary of results of the experimental and the numerical calculations for the first model
(bonded anchors at an angle of 60°)
Description
Results
Pull-out force (kN) Displacement (mm)
Three-layer block element with the
anchor bonded 60°
Experiment 11.25
0.13
ANSYS
14.00
0.11
Difference
2.75
0.02
Table 5 Title of the inserted table summary of the results of the experimental and the numerical
calculations for the second model (bonded anchors at an angle of 60°)
Description
Results
Pull-out force (kN) Displacement (mm)
Three-layer block element with the
anchor bonded 60°
Experiment
9.10
0.10
ANSYS
14.00
0.19
Difference
4.90
0.09
Table 6 Summary of results of the experimental and the numerical calculations for the first model
(bonded anchors at an angle of 45°)
Description
Results
Pull-out force (kN) Displacement (mm)
Three-layer block element with the
anchor bonded 45°
Experiment
3.50
0.04
ANSYS
11.00
0.08
Difference
7.50
0.04
Table 7 Summary of the results of the experimental and numerical calculations for the second
model (bonded anchors at an angle of 45°)
Description
Results
Pull-out force (kN) Displacement (mm)
Three-layer block element with the
anchor bonded 45°
Experiment
4.20
0.05
ANSYS
11.00
0.09
Difference
6.80
0.04
Table 8 Summary of the results of experimental and the numerical calculations for the second
model (bonded anchors at an angle of 30°)
Description
Results
Pull-out force (kN) Displacement (mm)
Three-layer block element with the
anchor bonded 30°
Experiment 11.90
0.14
ANSYS
12.00
0.09
Difference
0.10
0.05
Table 9 Summary of results of experimental and numerical calculations for the second model
(bonded anchors at an angle of 30°)
Description
Results
Pull-out force (kN) Displacement (mm)
Three-layer block element with the
anchor bonded 30°
Experiment 30.50
0.35
ANSYS
30.00
0.33
Difference
0.50
0.02
