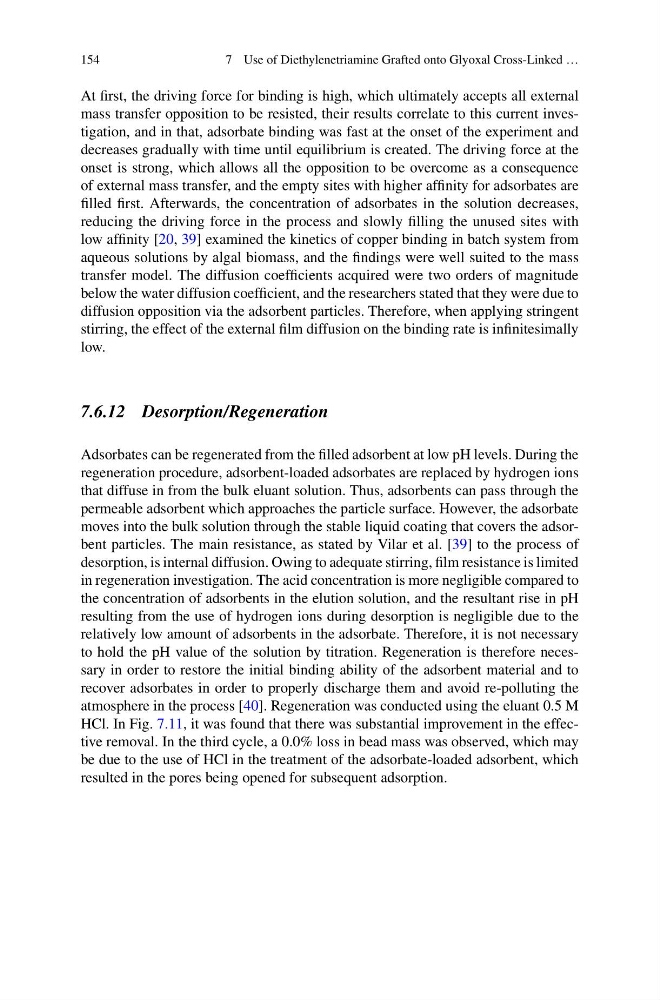

154
7 Use of Diethylenetriamine Grafted onto Glyoxal Cross-Linked …
At first, the driving force for binding is high, which ultimately accepts all external
mass transfer opposition to be resisted, their results correlate to this current investigation, and in that, adsorbate binding was fast at the onset of the experiment and
decreases gradually with time until equilibrium is created. The driving force at the
onset is strong, which allows all the opposition to be overcome as a consequence
of external mass transfer, and the empty sites with higher affinity for adsorbates are
filled first. Afterwards, the concentration of adsorbates in the solution decreases,
reducing the driving force in the process and slowly filling the unused sites with
low affinity [20, 39] examined the kinetics of copper binding in batch system from
aqueous solutions by algal biomass, and the findings were well suited to the mass
transfer model. The diffusion coefficients acquired were two orders of magnitude
below the water diffusion coefficient, and the researchers stated that they were due to
diffusion opposition via the adsorbent particles. Therefore, when applying stringent
stirring, the effect of the external film diffusion on the binding rate is infinitesimally
low.
7.6.12 Desorption/Regeneration
Adsorbates can be regenerated from the filled adsorbent at low pH levels. During the
regeneration procedure, adsorbent-loaded adsorbates are replaced by hydrogen ions
that diffuse in from the bulk eluant solution. Thus, adsorbents can pass through the
permeable adsorbent which approaches the particle surface. However, the adsorbate
moves into the bulk solution through the stable liquid coating that covers the adsorbent particles. The main resistance, as stated by Vilar et al. [39] to the process of
desorption, is internal diffusion. Owing to adequate stirring, film resistance is limited
in regeneration investigation. The acid concentration is more negligible compared to
the concentration of adsorbents in the elution solution, and the resultant rise in pH
resulting from the use of hydrogen ions during desorption is negligible due to the
relatively low amount of adsorbents in the adsorbate. Therefore, it is not necessary
to hold the pH value of the solution by titration. Regeneration is therefore necessary in order to restore the initial binding ability of the adsorbent material and to
recover adsorbates in order to properly discharge them and avoid re-polluting the
atmosphere in the process [40]. Regeneration was conducted using the eluant 0.5 M
HCl. In Fig. 7.11, it was found that there was substantial improvement in the effective removal. In the third cycle, a 0.0% loss in bead mass was observed, which may
be due to the use of HCl in the treatment of the adsorbate-loaded adsorbent, which
resulted in the pores being opened for subsequent adsorption.
