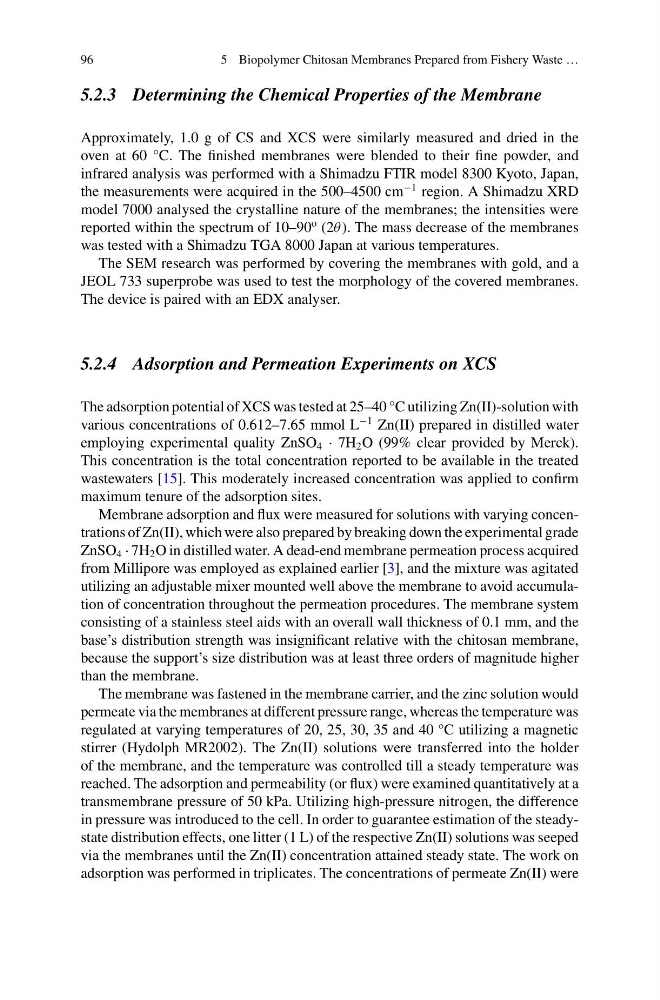

96
5 Biopolymer Chitosan Membranes Prepared from Fishery Waste …
5.2.3 Determining the Chemical Properties of the Membrane
Approximately, 1.0 g of CS and XCS were similarly measured and dried in the
oven at 60 °C. The finished membranes were blended to their fine powder, and
infrared analysis was performed with a Shimadzu FTIR model 8300 Kyoto, Japan,
the measurements were acquired in the 500–4500 cm
−1 region. A Shimadzu XRD
model 7000 analysed the crystalline nature of the membranes; the intensities were
reported within the spectrum of 10–90
o (2θ ). The mass decrease of the membranes
was tested with a Shimadzu TGA 8000 Japan at various temperatures.
The SEM research was performed by covering the membranes with gold, and a
JEOL 733 superprobe was used to test the morphology of the covered membranes.
The device is paired with an EDX analyser.
5.2.4 Adsorption and Permeation Experiments on XCS
The adsorption potential of XCS was tested at 25–40 °C utilizing Zn(II)-solution with
various concentrations of 0.612–7.65 mmol L
−1 Zn(II) prepared in distilled water
employing experimental quality ZnSO 4 · 7H 2 O (99% clear provided by Merck).
This concentration is the total concentration reported to be available in the treated
wastewaters [15]. This moderately increased concentration was applied to confirm
maximum tenure of the adsorption sites.
Membrane adsorption and flux were measured for solutions with varying concentrations of Zn(II), which were also prepared by breaking down the experimental grade
ZnSO 4 · 7H 2 O in distilled water. A dead-end membrane permeation process acquired
from Millipore was employed as explained earlier [3], and the mixture was agitated
utilizing an adjustable mixer mounted well above the membrane to avoid accumulation of concentration throughout the permeation procedures. The membrane system
consisting of a stainless steel aids with an overall wall thickness of 0.1 mm, and the
base’s distribution strength was insignificant relative with the chitosan membrane,
because the support’s size distribution was at least three orders of magnitude higher
than the membrane.
The membrane was fastened in the membrane carrier, and the zinc solution would
permeate via the membranes at different pressure range, whereas the temperature was
regulated at varying temperatures of 20, 25, 30, 35 and 40 °C utilizing a magnetic
stirrer (Hydolph MR2002). The Zn(II) solutions were transferred into the holder
of the membrane, and the temperature was controlled till a steady temperature was
reached. The adsorption and permeability (or flux) were examined quantitatively at a
transmembrane pressure of 50 kPa. Utilizing high-pressure nitrogen, the difference
in pressure was introduced to the cell. In order to guarantee estimation of the steadystate distribution effects, one litter (1 L) of the respective Zn(II) solutions was seeped
via the membranes until the Zn(II) concentration attained steady state. The work on
adsorption was performed in triplicates. The concentrations of permeate Zn(II) were
5 Biopolymer Chitosan Membranes Prepared from Fishery Waste …
5.2.3 Determining the Chemical Properties of the Membrane
Approximately, 1.0 g of CS and XCS were similarly measured and dried in the
oven at 60 °C. The finished membranes were blended to their fine powder, and
infrared analysis was performed with a Shimadzu FTIR model 8300 Kyoto, Japan,
the measurements were acquired in the 500–4500 cm
−1 region. A Shimadzu XRD
model 7000 analysed the crystalline nature of the membranes; the intensities were
reported within the spectrum of 10–90
o (2θ ). The mass decrease of the membranes
was tested with a Shimadzu TGA 8000 Japan at various temperatures.
The SEM research was performed by covering the membranes with gold, and a
JEOL 733 superprobe was used to test the morphology of the covered membranes.
The device is paired with an EDX analyser.
5.2.4 Adsorption and Permeation Experiments on XCS
The adsorption potential of XCS was tested at 25–40 °C utilizing Zn(II)-solution with
various concentrations of 0.612–7.65 mmol L
−1 Zn(II) prepared in distilled water
employing experimental quality ZnSO 4 · 7H 2 O (99% clear provided by Merck).
This concentration is the total concentration reported to be available in the treated
wastewaters [15]. This moderately increased concentration was applied to confirm
maximum tenure of the adsorption sites.
Membrane adsorption and flux were measured for solutions with varying concentrations of Zn(II), which were also prepared by breaking down the experimental grade
ZnSO 4 · 7H 2 O in distilled water. A dead-end membrane permeation process acquired
from Millipore was employed as explained earlier [3], and the mixture was agitated
utilizing an adjustable mixer mounted well above the membrane to avoid accumulation of concentration throughout the permeation procedures. The membrane system
consisting of a stainless steel aids with an overall wall thickness of 0.1 mm, and the
base’s distribution strength was insignificant relative with the chitosan membrane,
because the support’s size distribution was at least three orders of magnitude higher
than the membrane.
The membrane was fastened in the membrane carrier, and the zinc solution would
permeate via the membranes at different pressure range, whereas the temperature was
regulated at varying temperatures of 20, 25, 30, 35 and 40 °C utilizing a magnetic
stirrer (Hydolph MR2002). The Zn(II) solutions were transferred into the holder
of the membrane, and the temperature was controlled till a steady temperature was
reached. The adsorption and permeability (or flux) were examined quantitatively at a
transmembrane pressure of 50 kPa. Utilizing high-pressure nitrogen, the difference
in pressure was introduced to the cell. In order to guarantee estimation of the steadystate distribution effects, one litter (1 L) of the respective Zn(II) solutions was seeped
via the membranes until the Zn(II) concentration attained steady state. The work on
adsorption was performed in triplicates. The concentrations of permeate Zn(II) were
