thereafter, it was recognized through Jorgensen and Lukas in 1981 (Lu et al. 2018).
Based on these techniques there are created two processes such as c.z.e and
Micellar electro kinetic capillary chromatography (m.e.k.c.c). At the first time these
technologies used for the detection of amino acid, oligonucleotides, nucleotides,
DNA, protein, etc., but at present, it is used for the detection of Psm (Voeten et al.
2018).
8.1.1 Principle of the Technique
This c.e method (M t d) is completely different from any other S pt technique.
Suppose we have various particles containing colloidal solution. Now, if these
particles are dynamic by an electrical field, then positive charges are accumulated in
cathode and negative charge in anode (Aiken and Hue 1993; Singh et al. 2017).
Because, during the particles dynamic movement, an electrical potential is generated into the solution. It is the main principle of c.e. However, managing this
technique requires a lot of things such as (a) capillary tube, (b) siphon tube (c) UV
detector. 50–100 µm diameter and 1 m length containing fused silica capillary
column (F.s.c.c) is used this instrument. F.s.c.c is cover by polyamide coat
(Rahman 2018). The sample is loaded in the end part of anode. Though there are a
various technique for sample loading such as (a) pressure differential (b) Siphoning
(c) Split flow injection (d) Electrophoretic injection. µg/ml and Nano/ gm. (Zhang
et al. 2020). Concentration containing sample is used for better S pt . At the first stage
of S pt electrical Vt g (maximum 50 kV Vt g but 30 Vt g is needed) is applied as a
result solution containing whole particles are accumulated in cathode by water
electro-osmotic pressure (ESOP). ESOP is the main driving force in this technique
(Issaadi et al. 2017). The water flow depends on the principle of (a) electro potential
of capillary and (b) nature of capillary. In neutral or alkaline PH medium the ESOP
is maximum. The silanol group of a capillary wall (C.w) is being polar because of
the highest ESOP (Ribeiro et al. 2018). The surface of the C.w is surrounded by the
negative charge. When these counter ions are attached with solution then a positive
Applied electrical field

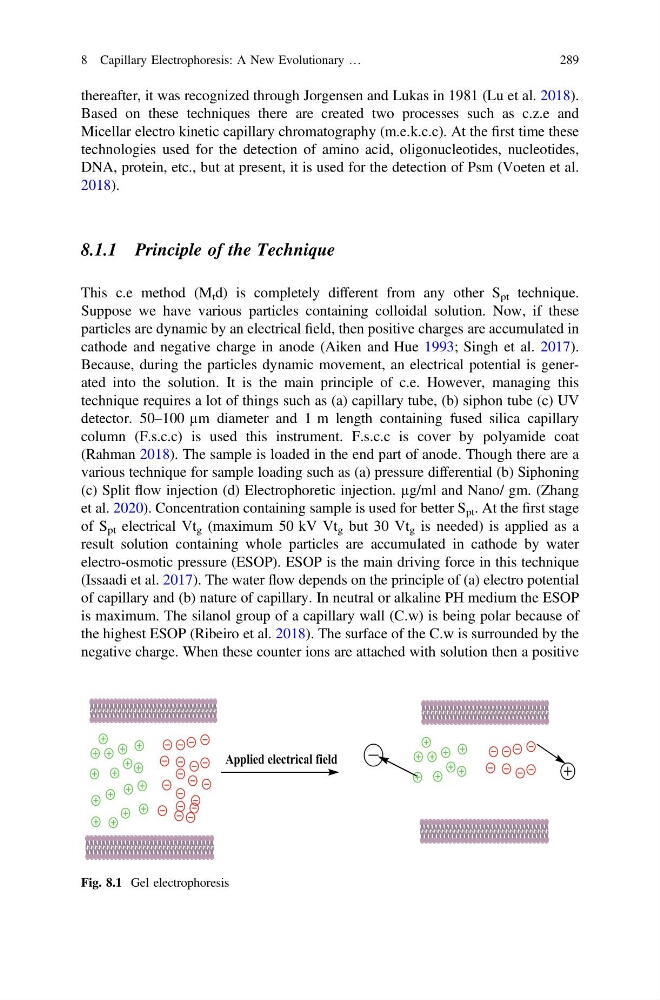

Fig. 8.1 Gel electrophoresis
