Processing of Polymetallic Materials Requires Flexible and …
743
are installed including their respective hood system (Fig. 4) which is connected to a
baghouse with the capacity of 120,000 N m
3 /h.
To minimize the utilization of a heating system supplied by fossils, a couple of
CFD simulations were performed in order to identify, if adequate working conditions
concerning temperature can be realized without an active ventilation concept. Due
to that, a model of the plant (Fig. 5) was developed taking into account the heated
kettles, pipes, the active exhaust at the kettles and a variation of openings like a ridge
turret, windows and gates. In the done simulations, the heating caused by radiation

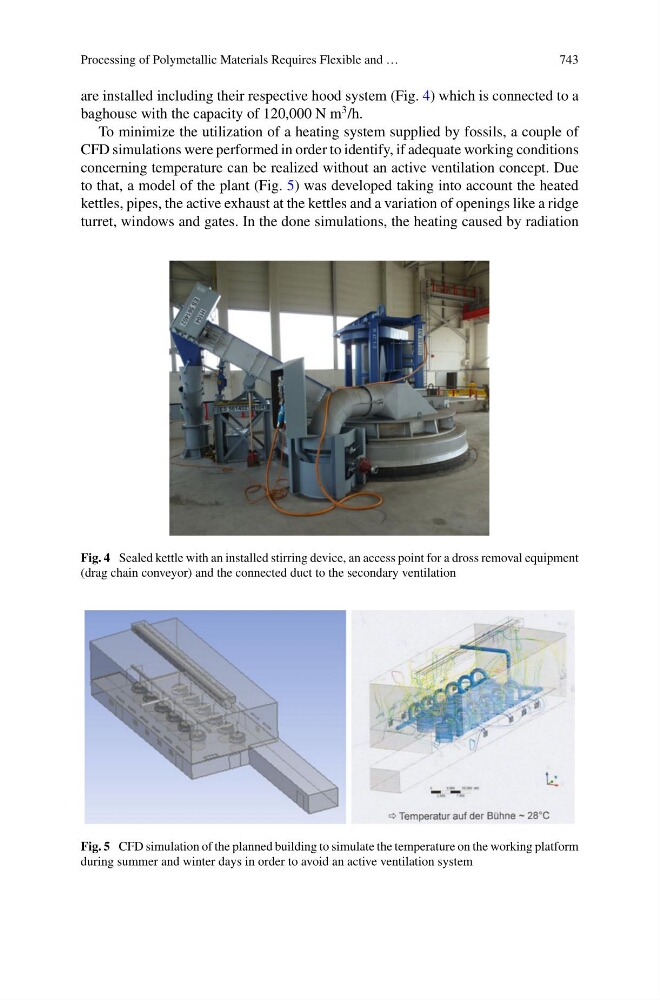

Fig. 4 Sealed kettle with an installed stirring device, an access point for a dross removal equipment
(drag chain conveyor) and the connected duct to the secondary ventilation
Fig. 5 CFD simulation of the planned building to simulate the temperature on the working platform
during summer and winter days in order to avoid an active ventilation system
