Network-on-Chip

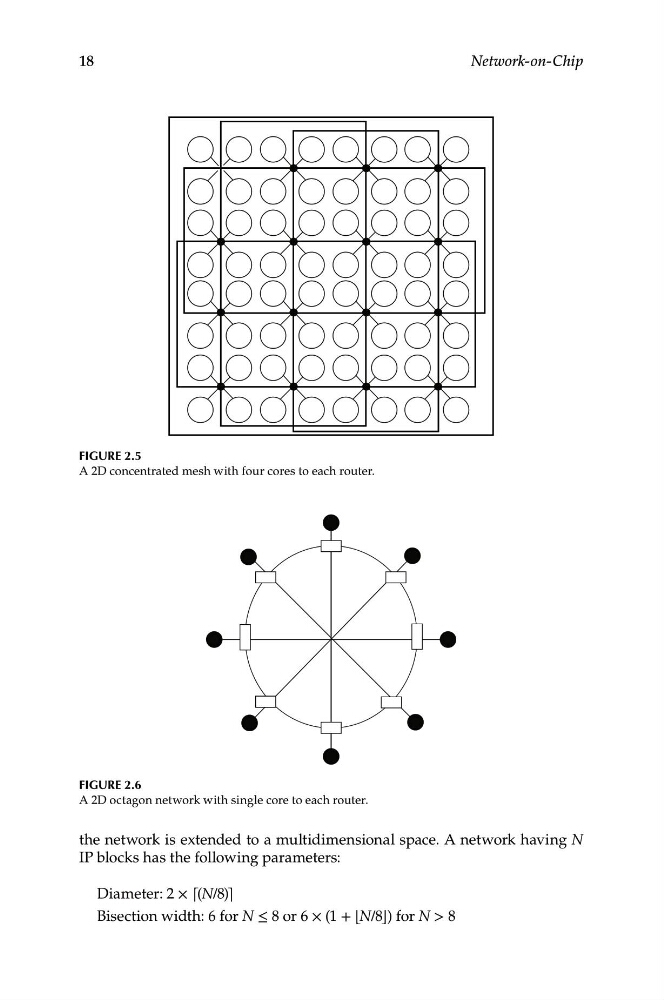

Figure 2.5
A 2D concentrated mesh with four cores to each router.
Figure 2.6
A 2D octagon network with single core to each router.
the network is extended to a multidimensional space. A network having N
IP blocks has the following parameters:
Diameter: 2 × ⌈(N/8)⌉
Bisection width: 6 for N ≤ 8 or 6 × (1 + ⌊N/8⌋) for N > 8
