Local Stress and Damage Response of Polycrystal Materials to Light Shock. . .
217

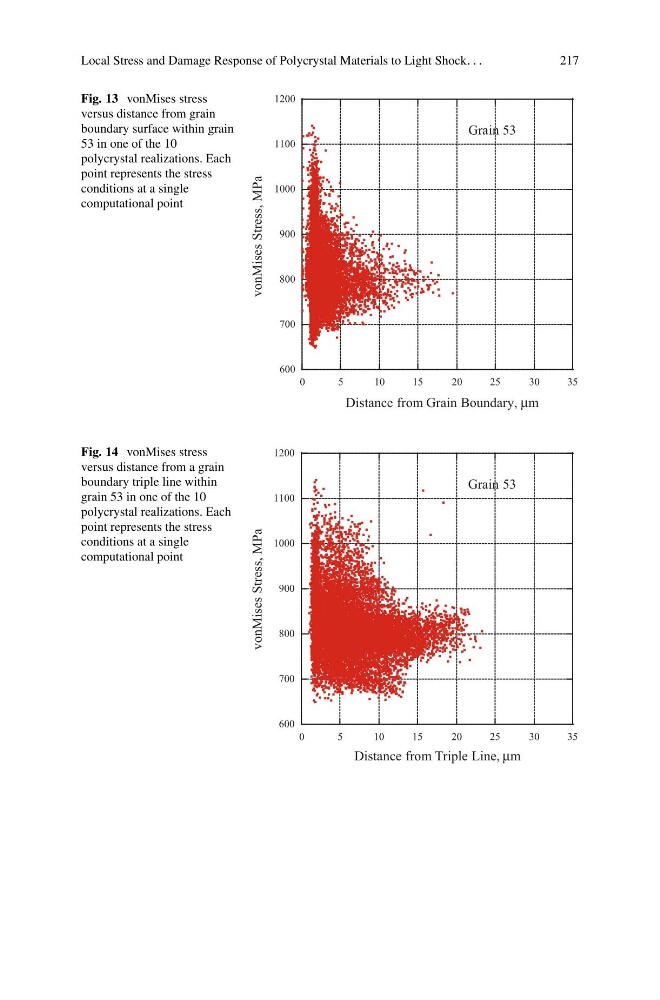

Fig. 13 vonMises stress
versus distance from grain
boundary surface within grain
53 in one of the 10
polycrystal realizations. Each
point represents the stress
conditions at a single
computational point
600
700
800
900
1000
1100
1200
0
5
10
15
20
25
30
35
vonMises Stress, MPa
Distance from Grain Boundary, µm
Grain 53
Fig. 14 vonMises stress
versus distance from a grain
boundary triple line within
grain 53 in one of the 10
polycrystal realizations. Each
point represents the stress
conditions at a single
computational point
600
700
800
900
1000
1100
1200
0
5
10
15
20
25
30
35
vonMises Stress, MPa
Distance from Triple Line, µm
Grain 53
