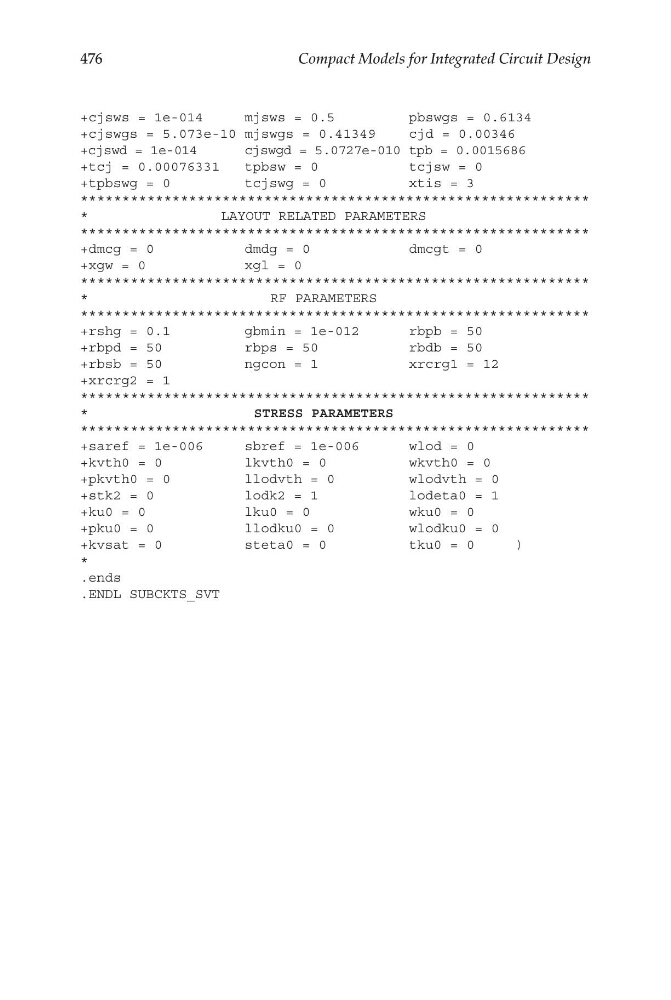

476
Compact Models for Integrated Circuit Design
+cjsws = 1e-014
mjsws = 0.5
pbswgs = 0.6134
+cjswgs = 5.073e-10 mjswgs = 0.41349
cjd = 0.00346
+cjswd = 1e-014
cjswgd = 5.0727e-010 tpb = 0.0015686
+tcj = 0.00076331
tpbsw = 0
tcjsw = 0
+tpbswg = 0
tcjswg = 0
xtis = 3
*************************************************************
*
LAYOUT RELATED PARAMETERS
*************************************************************
+dmcg = 0
dmdg = 0
dmcgt = 0
+xgw = 0
xgl = 0
*************************************************************
*
RF PARAMETERS
*************************************************************
+rshg = 0.1
gbmin = 1e-012
rbpb = 50
+rbpd = 50
rbps = 50
rbdb = 50
+rbsb = 50
ngcon = 1
xrcrg1 = 12
+xrcrg2 = 1
*************************************************************
*
STRESS PARAMETERS
*************************************************************
+saref = 1e-006
sbref = 1e-006
wlod = 0
+kvth0 = 0
lkvth0 = 0
wkvth0 = 0
+pkvth0 = 0
llodvth = 0
wlodvth = 0
+stk2 = 0
lodk2 = 1
lodeta0 = 1
+ku0 = 0
lku0 = 0
wku0 = 0
+pku0 = 0
llodku0 = 0
wlodku0 = 0
+kvsat = 0
steta0 = 0
tku0 = 0
)
*
.ends
.ENDL SUBCKTS_SVT
