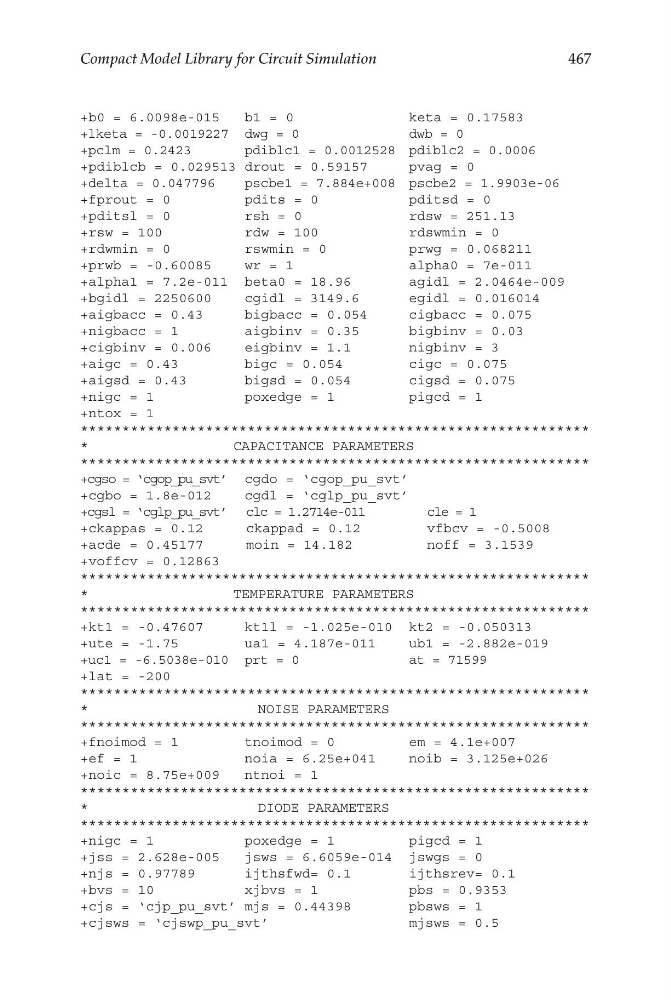

467
Compact Model Library for Circuit Simulation
+b0 = 6.0098e-015
b1 = 0
keta = 0.17583
+lketa = -0.0019227 dwg = 0
dwb = 0
+pclm = 0.2423
pdiblc1 = 0.0012528 pdiblc2 = 0.0006
+pdiblcb = 0.029513 drout = 0.59157
pvag = 0
+delta = 0.047796
pscbe1 = 7.884e+008 pscbe2 = 1.9903e-06
+fprout = 0
pdits = 0
pditsd = 0
+pditsl = 0
rsh = 0
rdsw = 251.13
+rsw = 100
rdw = 100
rdswmin = 0
+rdwmin = 0
rswmin = 0
prwg = 0.068211
+prwb = -0.60085
wr = 1
alpha0 = 7e-011
+alpha1 = 7.2e-011 beta0 = 18.96
agidl = 2.0464e-009
+bgidl = 2250600
cgidl = 3149.6
egidl = 0.016014
+aigbacc = 0.43
bigbacc = 0.054
cigbacc = 0.075
+nigbacc = 1
aigbinv = 0.35
bigbinv = 0.03
+cigbinv = 0.006
eigbinv = 1.1
nigbinv = 3
+aigc = 0.43
bigc = 0.054
cigc = 0.075
+aigsd = 0.43
bigsd = 0.054
cigsd = 0.075
+nigc = 1
poxedge = 1
pigcd = 1
+ntox = 1
*************************************************************
*
CAPACITANCE PARAMETERS
*************************************************************
+cgso = ‘cgop_pu_svt’ cgdo = ‘cgop_pu_svt’
+cgbo = 1.8e-012
cgdl = ‘cglp_pu_svt’
+cgsl = ‘cglp_pu_svt’ clc = 1.2714e-011
cle = 1
+ckappas = 0.12
ckappad = 0.12
vfbcv = -0.5008
+acde = 0.45177
moin = 14.182
noff = 3.1539
+voffcv = 0.12863
*************************************************************
*
TEMPERATURE PARAMETERS
*************************************************************
+kt1 = -0.47607
kt1l = -1.025e-010 kt2 = -0.050313
+ute = -1.75
ua1 = 4.187e-011
ub1 = -2.882e-019
+uc1 = -6.5038e-010 prt = 0
at = 71599
+lat = -200
*************************************************************
*
NOISE PARAMETERS
*************************************************************
+fnoimod = 1
tnoimod = 0
em = 4.1e+007
+ef = 1
noia = 6.25e+041
noib = 3.125e+026
+noic = 8.75e+009
ntnoi = 1
*************************************************************
*
DIODE PARAMETERS
*************************************************************
+nigc = 1
poxedge = 1
pigcd = 1
+jss = 2.628e-005
jsws = 6.6059e-014 jswgs = 0
+njs = 0.97789
ijthsfwd= 0.1
ijthsrev= 0.1
+bvs = 10
xjbvs = 1
pbs = 0.9353
+cjs = ‘cjp_pu_svt’ mjs = 0.44398
pbsws = 1
+cjsws = ‘cjswp_pu_svt’
mjsws = 0.5
