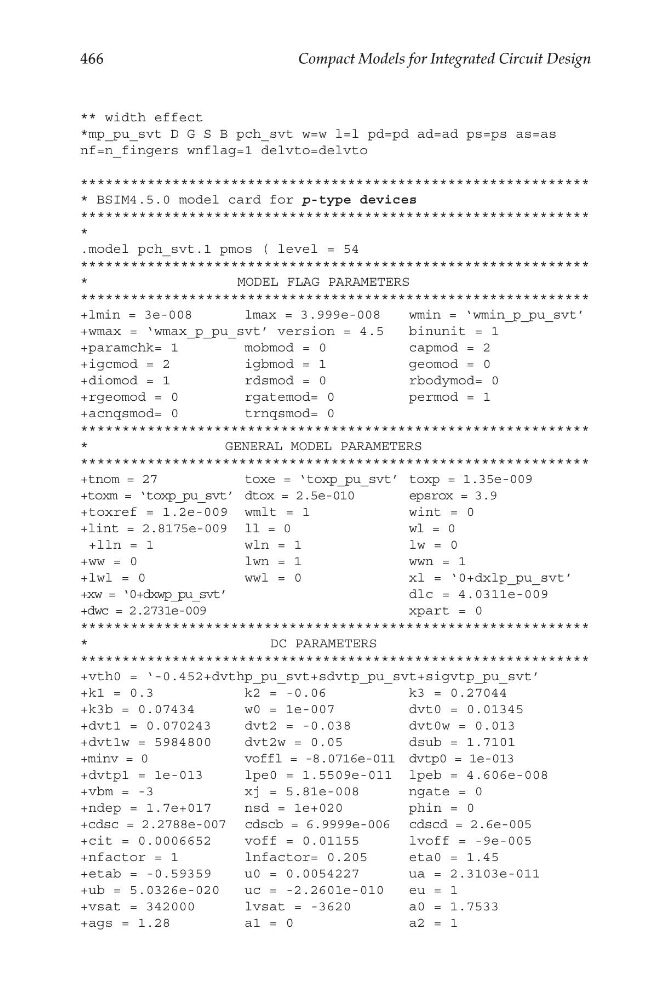

466
Compact Models for Integrated Circuit Design
** width effect
*mp_pu_svt D G S B pch_svt w=w l=l pd=pd ad=ad ps=ps as=as
nf=n_fingers wnflag=1 delvto=delvto
*************************************************************
* BSIM4.5.0 model card for p-type devices
*************************************************************
*
.model pch_svt.1 pmos ( level = 54
*************************************************************
*
MODEL FLAG PARAMETERS
*************************************************************
+lmin = 3e-008
lmax = 3.999e-008
wmin = ‘wmin_p_pu_svt’
+wmax = ‘wmax_p_pu_svt’ version = 4.5
binunit = 1
+paramchk= 1
mobmod = 0
capmod = 2
+igcmod = 2
igbmod = 1
geomod = 0
+diomod = 1
rdsmod = 0
rbodymod= 0
+rgeomod = 0
rgatemod= 0
permod = 1
+acnqsmod= 0
trnqsmod= 0
*************************************************************
*
GENERAL MODEL PARAMETERS
*************************************************************
+tnom = 27
toxe = ‘toxp_pu_svt’ toxp = 1.35e-009
+toxm = ‘toxp_pu_svt’ dtox = 2.5e-010
epsrox = 3.9
+toxref = 1.2e-009 wmlt = 1
wint = 0
+lint = 2.8175e-009 ll = 0
wl = 0
+lln = 1
wln = 1
lw = 0
+ww = 0
lwn = 1
wwn = 1
+lwl = 0
wwl = 0
xl = ‘0+dxlp_pu_svt’
+xw = ‘0+dxwp_pu_svt’
dlc = 4.0311e-009
+dwc = 2.2731e-009
xpart = 0
*************************************************************
*
DC PARAMETERS
*************************************************************
+vth0 = ‘-0.452+dvthp_pu_svt+sdvtp_pu_svt+sigvtp_pu_svt’
+k1 = 0.3
k2 = -0.06
k3 = 0.27044
+k3b = 0.07434
w0 = 1e-007
dvt0 = 0.01345
+dvt1 = 0.070243
dvt2 = -0.038
dvt0w = 0.013
+dvt1w = 5984800
dvt2w = 0.05
dsub = 1.7101
+minv = 0
voffl = -8.0716e-011 dvtp0 = 1e-013
+dvtp1 = 1e-013
lpe0 = 1.5509e-011 lpeb = 4.606e-008
+vbm = -3
xj = 5.81e-008
ngate = 0
+ndep = 1.7e+017
nsd = 1e+020
phin = 0
+cdsc = 2.2788e-007 cdscb = 6.9999e-006 cdscd = 2.6e-005
+cit = 0.0006652
voff = 0.01155
lvoff = -9e-005
+nfactor = 1
lnfactor= 0.205
eta0 = 1.45
+etab = -0.59359
u0 = 0.0054227
ua = 2.3103e-011
+ub = 5.0326e-020
uc = -2.2601e-010
eu = 1
+vsat = 342000
lvsat = -3620
a0 = 1.7533
+ags = 1.28
a1 = 0
a2 = 1
