9 Eco-innovation by Integrating Emerging Technologies with ARIZ Method
129

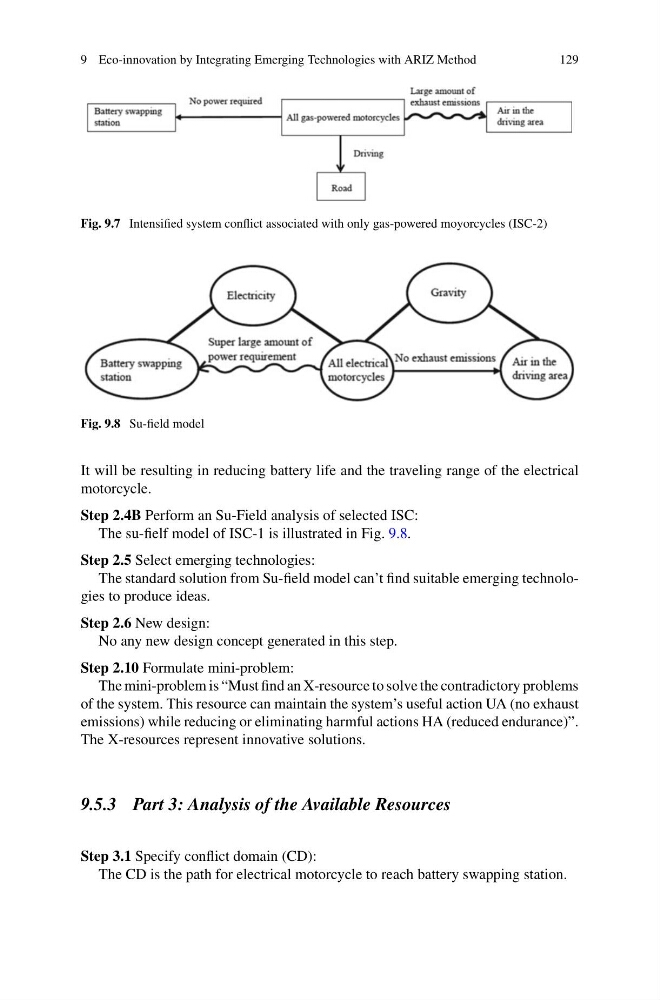

Fig. 9.7 Intensified system conflict associated with only gas-powered moyorcycles (ISC-2)
Fig. 9.8 Su-field model
It will be resulting in reducing battery life and the traveling range of the electrical
motorcycle.
Step 2.4B Perform an Su-Field analysis of selected ISC:
The su-fielf model of ISC-1 is illustrated in Fig. 9.8.
Step 2.5 Select emerging technologies:
The standard solution from Su-field model can’t find suitable emerging technologies to produce ideas.
Step 2.6 New design:
No any new design concept generated in this step.
Step 2.10 Formulate mini-problem:
The mini-problem is “Must find an X-resource to solve the contradictory problems
of the system. This resource can maintain the system’s useful action UA (no exhaust
emissions) while reducing or eliminating harmful actions HA (reduced endurance)”.
The X-resources represent innovative solutions.
9.5.3 Part 3: Analysis of the Available Resources
Step 3.1 Specify conflict domain (CD):
The CD is the path for electrical motorcycle to reach battery swapping station.
