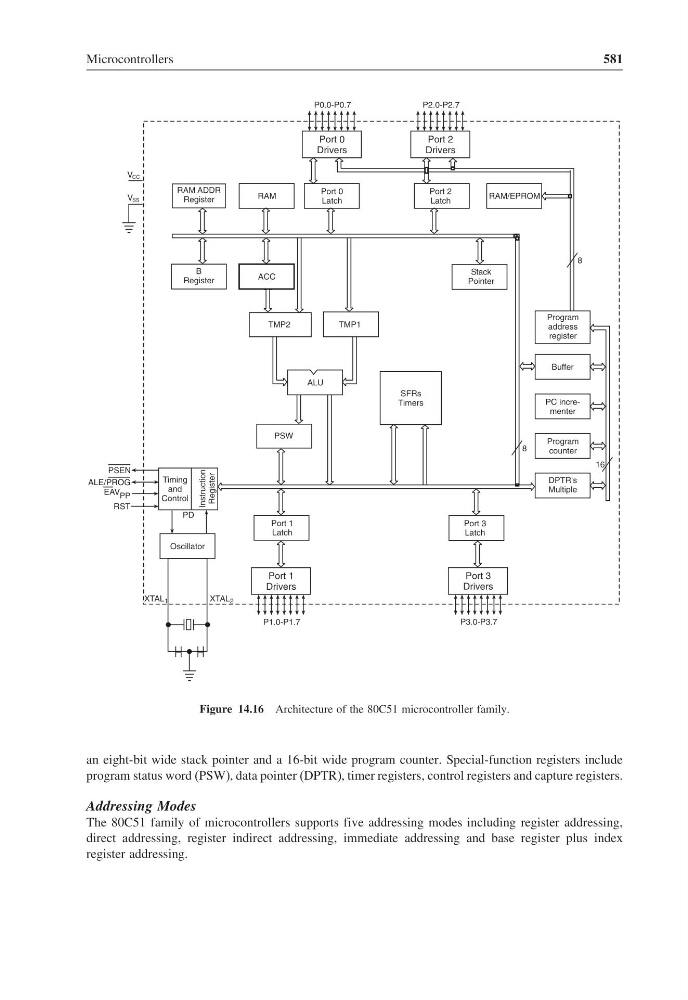

Figure 14.16 Architecture of the 80C51 microcontroller family.
an eight-bit wide stack pointer and a 16-bit wide program counter. Special-function registers include
program status word (PSW), data pointer (DPTR), timer registers, control registers and capture registers.
Addressing Modes
The 80C51 family of microcontrollers supports five addressing modes including register addressing,
direct addressing, register indirect addressing, immediate addressing and base register plus index
register addressing.
