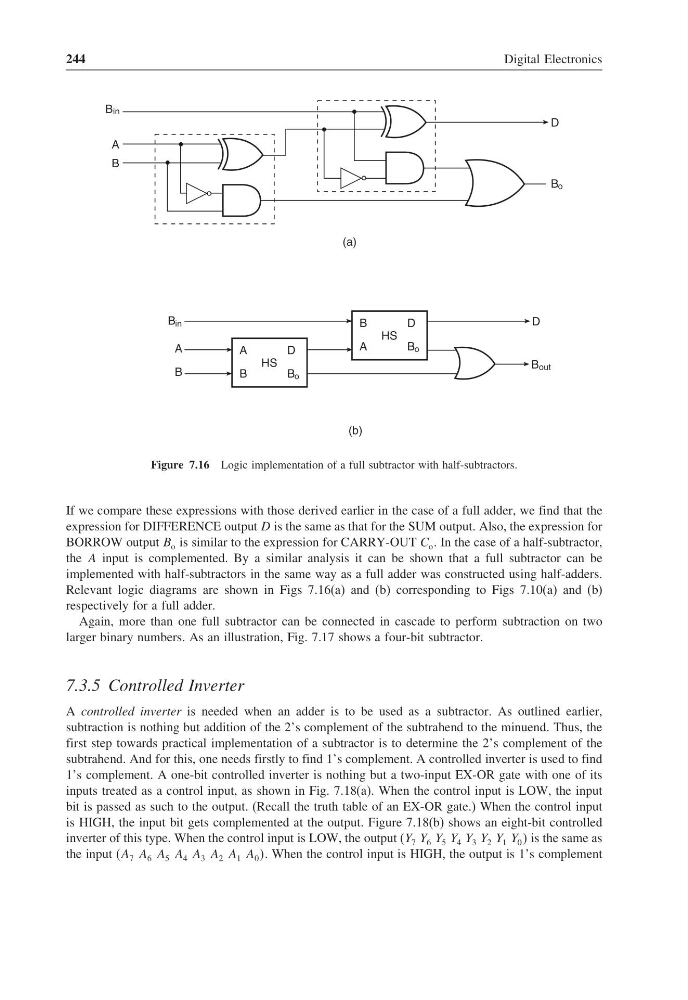

Figure 7.16 Logic implementation of a full subtractor with half-subtractors.
If we compare these expressions with those derived earlier in the case of a full adder, we find that the
expression for DIFFERENCE output D is the same as that for the SUM output. Also, the expression for
BORROW output B o is similar to the expression for CARRY-OUT C o . In the case of a half-subtractor,
the A input is complemented. By a similar analysis it can be shown that a full subtractor can be
implemented with half-subtractors in the same way as a full adder was constructed using half-adders.
Relevant logic diagrams are shown in Figs 7.16(a) and (b) corresponding to Figs 7.10(a) and (b)
respectively for a full adder.
Again, more than one full subtractor can be connected in cascade to perform subtraction on two
larger binary numbers. As an illustration, Fig. 7.17 shows a four-bit subtractor.
