5.11 Guidelines to Handling and Using CMOS Devices
The following guidelines should be adhered to while using CMOS family devices:
1. Proper handling of CMOS ICs before they are used and also after they have been mounted on the PC
boards is very important as these ICs are highly prone to damage by electrostatic discharge. Although
all CMOS ICs have inbuilt protection networks to guard them against electrostatic discharge,
precautions should be taken to avoid such an eventuality. While handling unmounted chips, potential
differences should be avoided. It is good practice to cover the chips with a conductive foil. Once
the chips have been mounted on the PC board, it is good practice again to put conductive clips or
conductive tape on the PC board terminals. Remember that PC board is nothing but an extension
of the leads of the ICs mounted on it unless it is integrated with the overall system and proper
voltages are present.
2. All unused inputs must always be connected to either V SS or V DD depending upon the logic involved.
A floating input can result in a faulty logic operation. In the case of high-current device types
such as buffers, it can also lead to the maximum power dissipation of the chip being exceeded,
thus causing device damage. A resistor (typically 220 k to 1 M should preferably be connected
between input and the V SS or V DD if there is a possibility of device terminals becoming temporarily
unconnected or open.
3. The recommended operating supply voltage ranges are 3–12 V for A-series (3–15 V being the
maximum rating) and 3–15 V for B-series and UB-series (3–18 V being the maximum). For CMOS
IC application circuits that are operated in a linear mode over a portion of the voltage range, such
as RC or crystal oscillators, a minimum V DD of 4 V is recommended.
4. Input signals should be maintained within the power supply voltage range V SS < V i < V DD (−0.5 V
< V i < V DD + 0.5 V being the absolute maximum). If the input signal exceeds the recommended
input signal range, the input current should be limited to ±100 mA.
5. CMOS ICs like active pull-up TTL ICs cannot be connected in WIRE-OR configuration. Paralleling
of inputs and outputs of gates is also recommended for ICs in the same package only.
6. The majority of CMOS clocked devices have maximum rise and fall time ratings of normally 5–15 s.
The device may not function properly with larger rise and fall times. The restriction, however, does not
apply to those CMOS ICs that have inbuilt Schmitt trigger shaping in the clock circuit.
5.12 Interfacing with Different Logic Families
CMOS and TTL are the two most widely used logic families. Although ICs belonging to the same
logic family have no special interface requirements, that is, the output of one can directly feed the input
of the other, the same is not true if we have to interconnect digital ICs belonging to different logic
families. Incompatibility of ICs belonging to different families mainly arises from different voltage
levels and current requirements associated with LOW and HIGH logic states at the inputs and outputs.
In this section, we will discuss simple interface techniques that can be used for CMOS-to-TTL and
TTL-to-CMOS interconnections. Interface guidelines for CMOS–ECL, ECL–CMOS, TTL–ECL and
ECL–TTL are also given.
5.12.1 CMOS-to-TTL Interface
The first possible type of CMOS-to-TTL interface is the one where both ICs are operated from a
common supply. We have read in earlier sections that the TTL family has a recommended supply
179

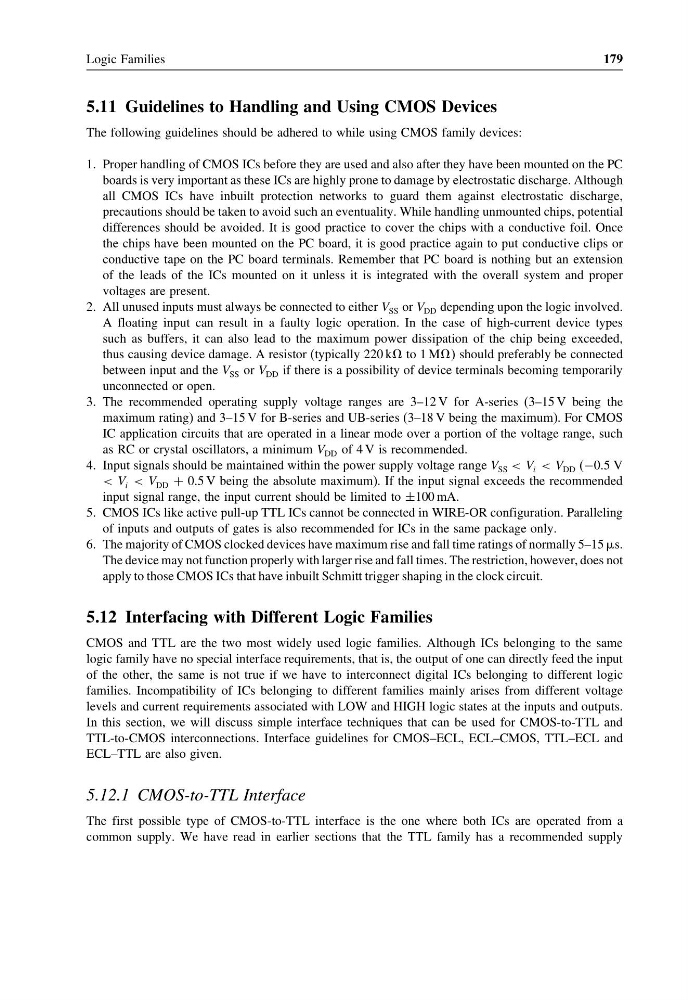

5.11 Guidelines to Handling and Using CMOS Devices
The following guidelines should be adhered to while using CMOS family devices:
1. Proper handling of CMOS ICs before they are used and also after they have been mounted on the PC
boards is very important as these ICs are highly prone to damage by electrostatic discharge. Although
all CMOS ICs have inbuilt protection networks to guard them against electrostatic discharge,
precautions should be taken to avoid such an eventuality. While handling unmounted chips, potential
differences should be avoided. It is good practice to cover the chips with a conductive foil. Once
the chips have been mounted on the PC board, it is good practice again to put conductive clips or
conductive tape on the PC board terminals. Remember that PC board is nothing but an extension
of the leads of the ICs mounted on it unless it is integrated with the overall system and proper
voltages are present.
2. All unused inputs must always be connected to either V SS or V DD depending upon the logic involved.
A floating input can result in a faulty logic operation. In the case of high-current device types
such as buffers, it can also lead to the maximum power dissipation of the chip being exceeded,
thus causing device damage. A resistor (typically 220 k to 1 M should preferably be connected
between input and the V SS or V DD if there is a possibility of device terminals becoming temporarily
unconnected or open.
3. The recommended operating supply voltage ranges are 3–12 V for A-series (3–15 V being the
maximum rating) and 3–15 V for B-series and UB-series (3–18 V being the maximum). For CMOS
IC application circuits that are operated in a linear mode over a portion of the voltage range, such
as RC or crystal oscillators, a minimum V DD of 4 V is recommended.
4. Input signals should be maintained within the power supply voltage range V SS < V i < V DD (−0.5 V
< V i < V DD + 0.5 V being the absolute maximum). If the input signal exceeds the recommended
input signal range, the input current should be limited to ±100 mA.
5. CMOS ICs like active pull-up TTL ICs cannot be connected in WIRE-OR configuration. Paralleling
of inputs and outputs of gates is also recommended for ICs in the same package only.
6. The majority of CMOS clocked devices have maximum rise and fall time ratings of normally 5–15 s.
The device may not function properly with larger rise and fall times. The restriction, however, does not
apply to those CMOS ICs that have inbuilt Schmitt trigger shaping in the clock circuit.
5.12 Interfacing with Different Logic Families
CMOS and TTL are the two most widely used logic families. Although ICs belonging to the same
logic family have no special interface requirements, that is, the output of one can directly feed the input
of the other, the same is not true if we have to interconnect digital ICs belonging to different logic
families. Incompatibility of ICs belonging to different families mainly arises from different voltage
levels and current requirements associated with LOW and HIGH logic states at the inputs and outputs.
In this section, we will discuss simple interface techniques that can be used for CMOS-to-TTL and
TTL-to-CMOS interconnections. Interface guidelines for CMOS–ECL, ECL–CMOS, TTL–ECL and
ECL–TTL are also given.
5.12.1 CMOS-to-TTL Interface
The first possible type of CMOS-to-TTL interface is the one where both ICs are operated from a
common supply. We have read in earlier sections that the TTL family has a recommended supply
