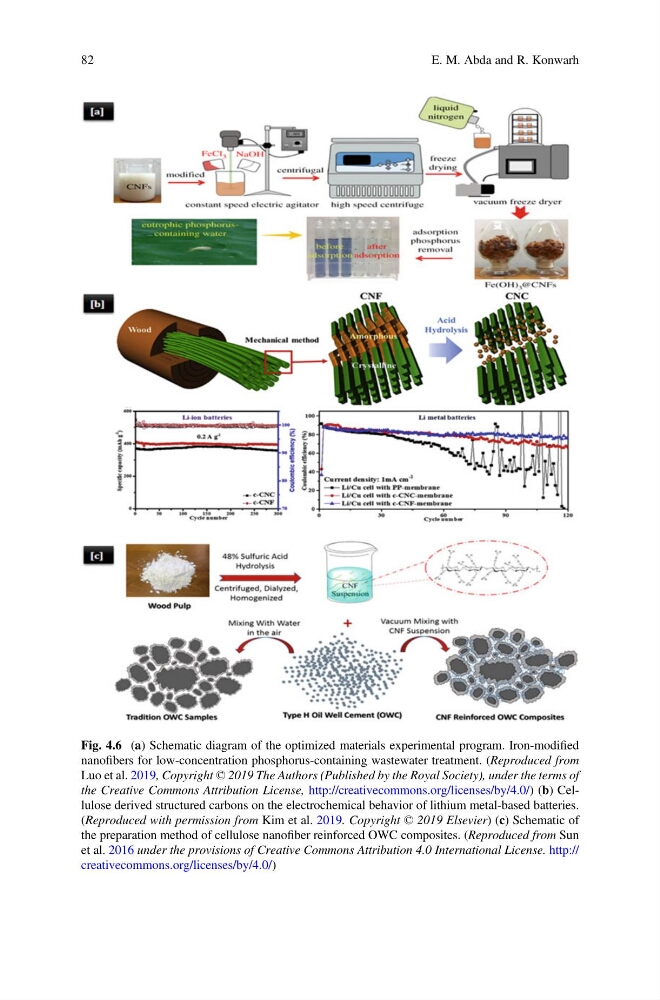

Fig. 4.6 (a) Schematic diagram of the optimized materials experimental program. Iron-modified
nanofibers for low-concentration phosphorus-containing wastewater treatment. (Reproduced from
Luo et al. 2019, Copyright © 2019 The Authors (Published by the Royal Society), under the terms of
the Creative Commons Attribution License, http://creativecommons.org/licenses/by/4.0/) (b) Cellulose derived structured carbons on the electrochemical behavior of lithium metal-based batteries.
(Reproduced with permission from Kim et al. 2019. Copyright © 2019 Elsevier) (c) Schematic of
the preparation method of cellulose nanofiber reinforced OWC composites. (Reproduced from Sun
et al. 2016 under the provisions of Creative Commons Attribution 4.0 International License. http://
creativecommons.org/licenses/by/4.0/)
