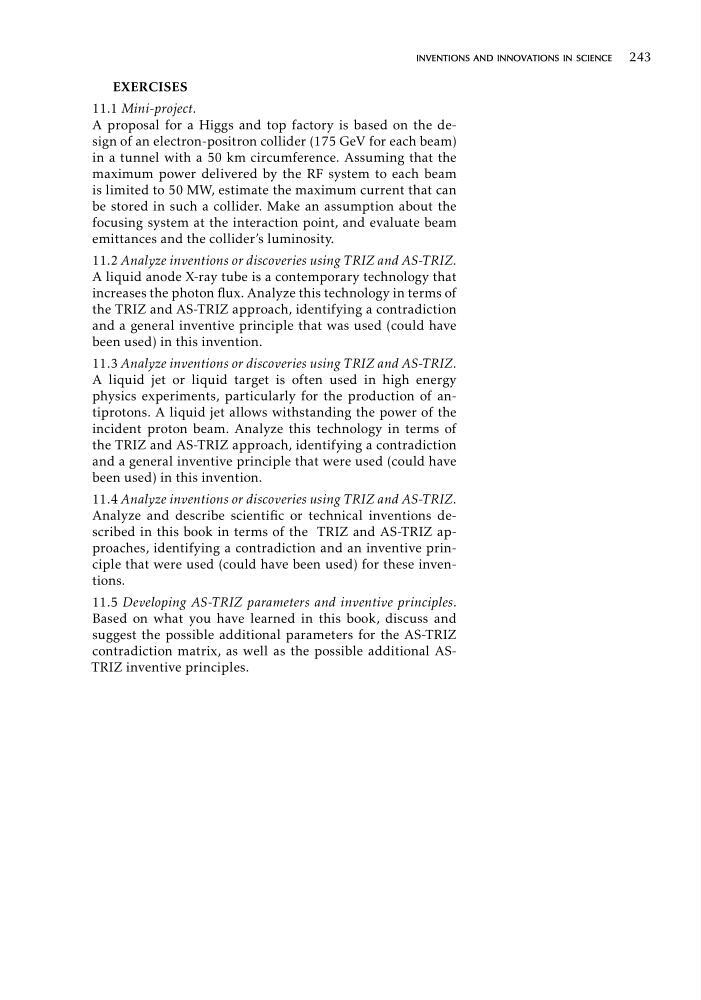

EXERCISES
11.1 Mini-project.
A proposal for a Higgs and top factory is based on the design of an electron-positron collider (175 GeV for each beam)
in a tunnel with a 50 km circumference. Assuming that the
maximum power delivered by the RF system to each beam
is limited to 50 MW, estimate the maximum current that can
be stored in such a collider. Make an assumption about the
focusing system at the interaction point, and evaluate beam
emittances and the collider’s luminosity.
11.2 Analyze inventions or discoveries using TRIZ and AS-TRIZ.
A liquid anode X-ray tube is a contemporary technology that
increases the photon flux. Analyze this technology in terms of
the TRIZ and AS-TRIZ approach, identifying a contradiction
and a general inventive principle that was used (could have
been used) in this invention.
11.3 Analyze inventions or discoveries using TRIZ and AS-TRIZ.
A liquid jet or liquid target is often used in high energy
physics experiments, particularly for the production of antiprotons. A liquid jet allows withstanding the power of the
incident proton beam. Analyze this technology in terms of
the TRIZ and AS-TRIZ approach, identifying a contradiction
and a general inventive principle that were used (could have
been used) in this invention.
11.4 Analyze inventions or discoveries using TRIZ and AS-TRIZ.
Analyze and describe scientific or technical inventions described in this book in terms of the TRIZ and AS-TRIZ approaches, identifying a contradiction and an inventive principle that were used (could have been used) for these inventions.
11.5 Developing AS-TRIZ parameters and inventive principles.
Based on what you have learned in this book, discuss and
suggest the possible additional parameters for the AS-TRIZ
contradiction matrix, as well as the possible additional ASTRIZ inventive principles.
