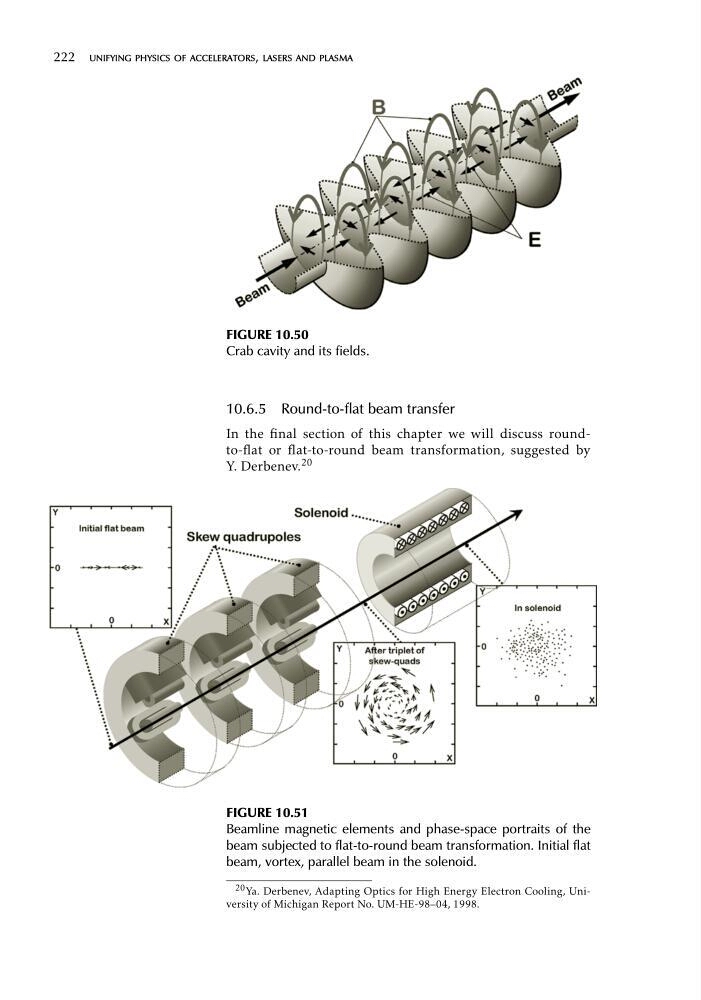

FIGURE 10.50
Crab cavity and its fields.
10.6.5 Round-to-flat beam transfer
In the final section of this chapter we will discuss roundto-flat or flat-to-round beam transformation, suggested by
Y. Derbenev. 20
FIGURE 10.51
Beamline magnetic elements and phase-space portraits of the
beam subjected to flat-to-round beam transformation. Initial flat
beam, vortex, parallel beam in the solenoid.
20 Ya. Derbenev, Adapting Optics for High Energy Electron Cooling, University of Michigan Report No. UM-HE-98–04, 1998.
