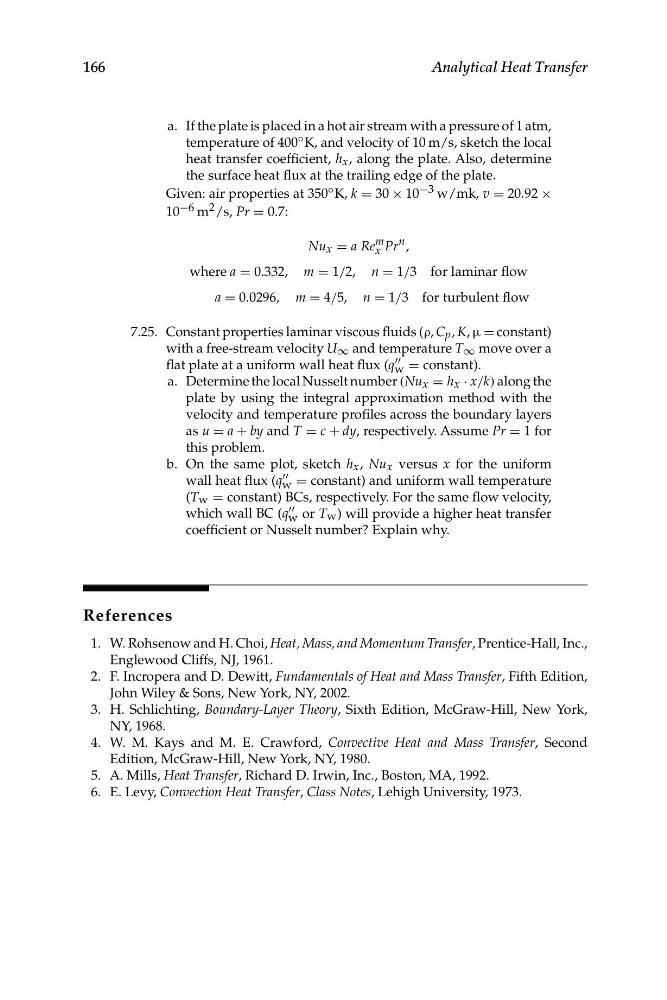

166
Analytical Heat Transfer
a. If the plate is placed in a hot air stream with a pressure of 1 atm,
temperature of 400 ◦ K, and velocity of 10 m/s, sketch the local
heat transfer coefficient, h x , along the plate. Also, determine
the surface heat flux at the trailing edge of the plate.
Given: air properties at 350 ◦ K, k = 30
6 2
× 10 −3 w/mk, v = 20.92 ×
10 − m /s, Pr = 0.7:
Nu x = a Re m Pr n
x
,
where a = 0.332, m = 1/2, n = 1/3 for laminar flow
a = 0.0296, m = 4/5, n = 1/3 for turbulent flow
7.25. Constant properties laminar viscous fluids (ρ, C p , K, μ = constant)
with a free-stream velocity U ∞ and temperature T ∞ move over a
flat plate at a uniform wall heat flux (q "" =
w
constant).
a. Determine the local Nusselt number (Nu x = h x · x/k) along the
plate by using the integral approximation method with the
velocity and temperature profiles across the boundary layers
as u = a + by and T = c + dy, respectively. Assume Pr = 1 for
this problem.
b. On the same plot, sketch h x , Nu x versus x for the uniform
wall heat flux (q ""
w = constant) and uniform wall temperature
(T w = constant) BCs, respectively. For the same flow velocity,
which wall BC (q ""
w or T w ) will provide a higher heat transfer
coefficient or Nusselt number? Explain why.
References
1. W. Rohsenow and H. Choi, Heat, Mass, and Momentum Transfer, Prentice-Hall, Inc.,
Englewood Cliffs, NJ, 1961.
2. F. Incropera and D. Dewitt, Fundamentals of Heat and Mass Transfer, Fifth Edition,
John Wiley & Sons, New York, NY, 2002.
3. H. Schlichting, Boundary-Layer Theory, Sixth Edition, McGraw-Hill, New York,
NY, 1968.
4. W. M. Kays and M. E. Crawford, Convective Heat and Mass Transfer, Second
Edition, McGraw-Hill, New York, NY, 1980.
5. A. Mills, Heat Transfer, Richard D. Irwin, Inc., Boston, MA, 1992.
6. E. Levy, Convection Heat Transfer, Class Notes, Lehigh University, 1973.
