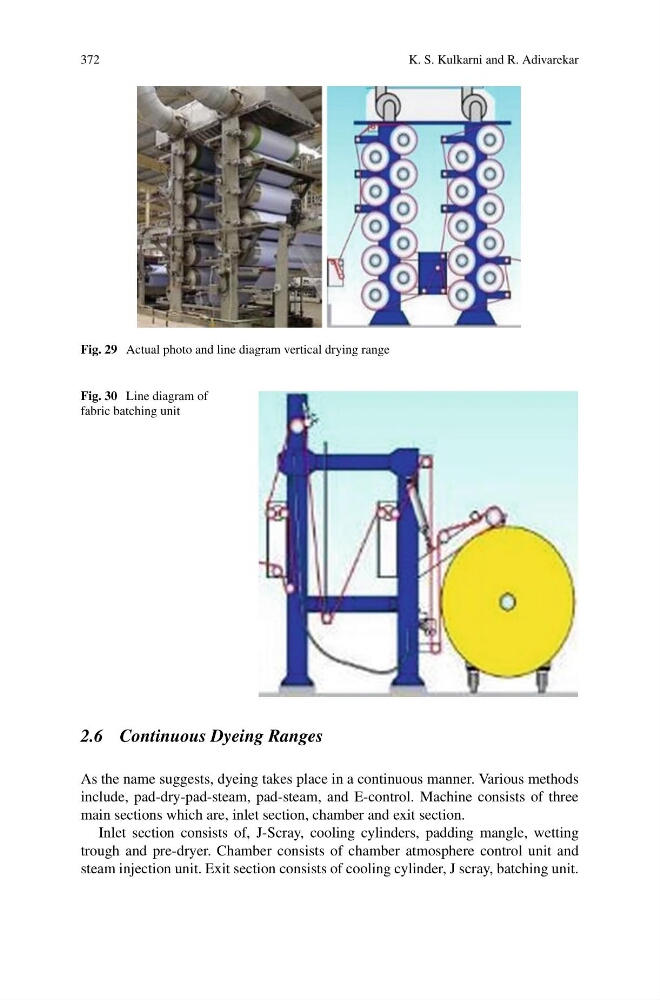

Fig. 29 Actual photo and line diagram vertical drying range
Fig. 30 Line diagram of
fabric batching unit
2.6 Continuous Dyeing Ranges
As the name suggests, dyeing takes place in a continuous manner. Various methods
include, pad-dry-pad-steam, pad-steam, and E-control. Machine consists of three
main sections which are, inlet section, chamber and exit section.
Inlet section consists of, J-Scray, cooling cylinders, padding mangle, wetting
trough and pre-dryer. Chamber consists of chamber atmosphere control unit and
steam injection unit. Exit section consists of cooling cylinder, J scray, batching unit.
