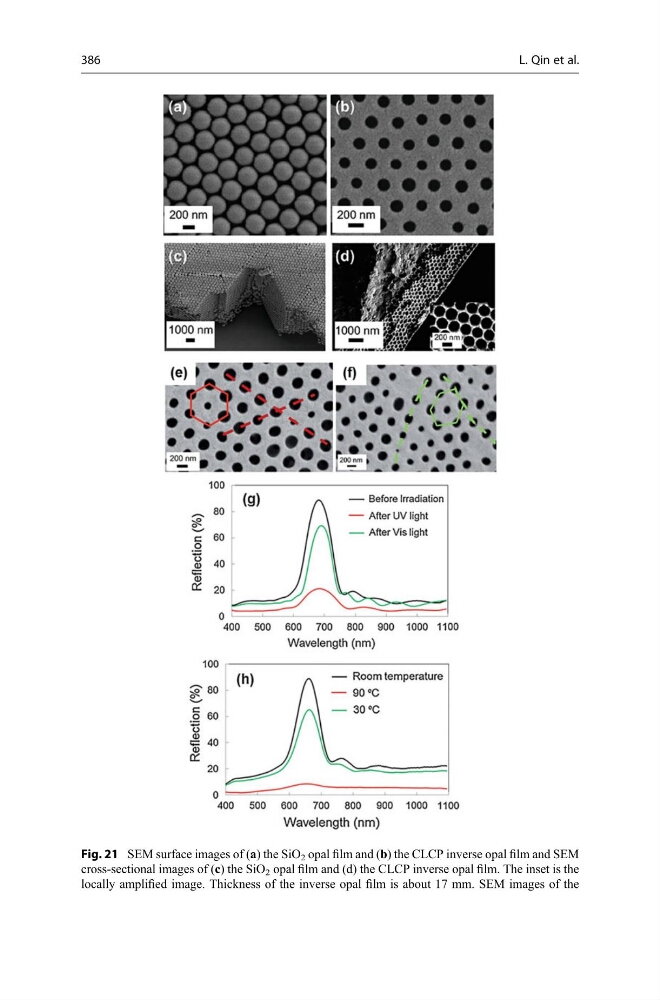

Fig. 21 SEM surface images of (a) the SiO 2 opal film and (b) the CLCP inverse opal film and SEM
cross-sectional images of (c) the SiO 2 opal film and (d) the CLCP inverse opal film. The inset is the
locally amplified image. Thickness of the inverse opal film is about 17 mm. SEM images of the
386
L. Qin et al.
