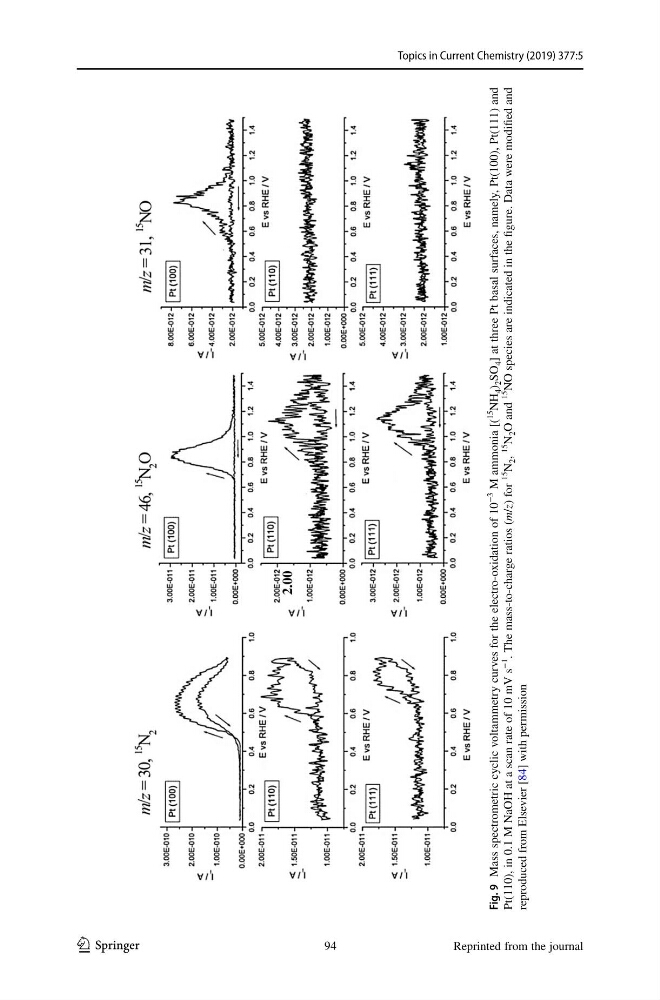

Fig. 9
Mass spectrometric cyclic voltammetry curves for the electro-oxidation of 10
−3
M ammonia [(
15
NH
4 )
2 SO
4 ] at three Pt basal surfaces, namely, Pt(100), Pt(111) and
Pt(110), in 0.1 M NaOH at a scan rate of 10 mV s
−1
. The mass-to-charge ratios (m/z) for
15
N
2 ,
15
N
2 O and
15
NO species are indicated in the figure. Data were modified and
reproduced from Elsevier [84] with permission
