409
11.4 Performance of Power Gas Turbines with Enhanced Cycles
11.4 Performance of Power Gas Turbines with Enhanced
Cycles
11.4.1 Compression with Intercooling
Incorporation of an intercooler into the compressor reduces compressor work.
But on the other hand, air led to the combustion chamber needs more heating. An
additional effect is reduced cooling flow rate, as the cooling air becomes colder.
Intercooling at an early stage in the compression is advantageous for efficiency.
The positive effect may be understood by considering a cycle with intercooling as a
INJPHWKDQHNJDLU
3UHVVXUHUDWLR

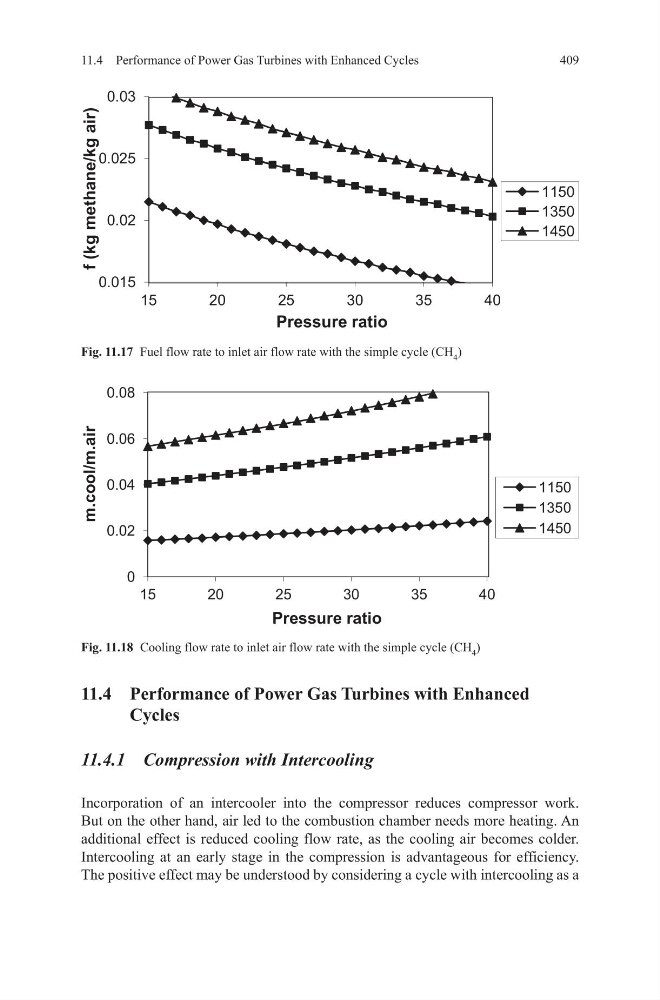

Fig. 11.17 Fuel flow rate to inlet air flow rate with the simple cycle (CH 4 )
PFRROPDLU
3UHVVXUHUDWLR
Fig. 11.18 Cooling flow rate to inlet air flow rate with the simple cycle (CH 4 )
11.4 Performance of Power Gas Turbines with Enhanced Cycles
11.4 Performance of Power Gas Turbines with Enhanced
Cycles
11.4.1 Compression with Intercooling
Incorporation of an intercooler into the compressor reduces compressor work.
But on the other hand, air led to the combustion chamber needs more heating. An
additional effect is reduced cooling flow rate, as the cooling air becomes colder.
Intercooling at an early stage in the compression is advantageous for efficiency.
The positive effect may be understood by considering a cycle with intercooling as a
INJPHWKDQHNJDLU
3UHVVXUHUDWLR
Fig. 11.17 Fuel flow rate to inlet air flow rate with the simple cycle (CH 4 )
PFRROPDLU
3UHVVXUHUDWLR
Fig. 11.18 Cooling flow rate to inlet air flow rate with the simple cycle (CH 4 )
