6.8 Steam Turbine Construction Forms
Fig. 6.27 Rotor of the LP
part of a large steam turbine.
(Courtesy Alstom)

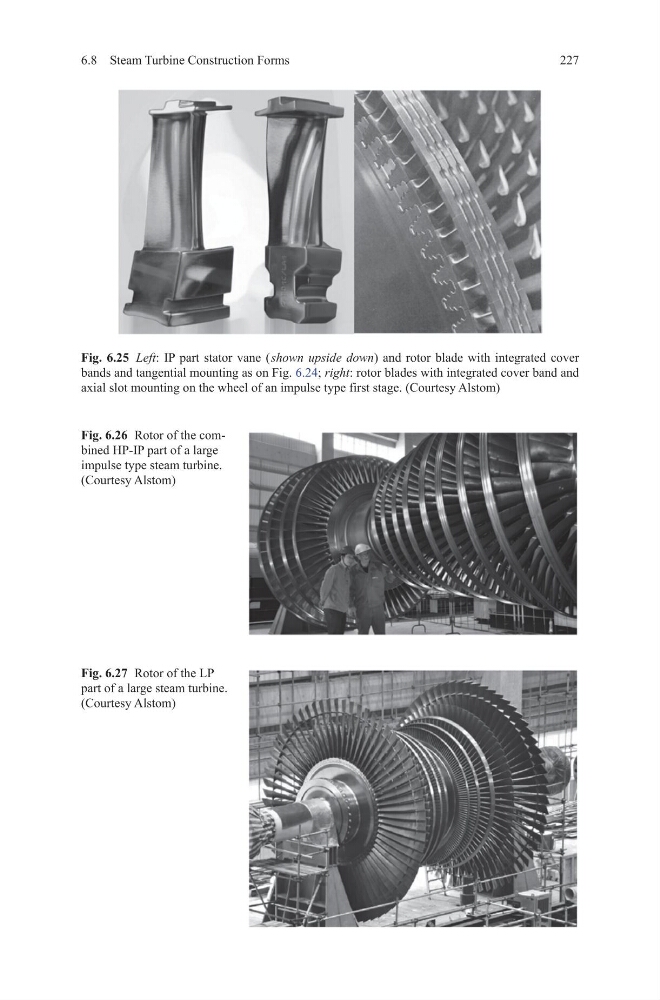

Fig. 6.25 Left:  IP  part  stator  vane  (  shown upside down) and rotor blade with integrated cover
bands and tangential mounting as on Fig. 6.24; right: rotor blades with integrated cover band and
axial slot mounting on the wheel of an impulse type first stage. (Courtesy Alstom)
Fig. 6.26 Rotor of the combined HP-IP part of a large
impulse type steam turbine.
(Courtesy Alstom)
