16.4 Conclusions
The results obtained for the production of the metallic foam were satisfactory, since it was possible to determine the optimal
parameters for the production of a foam with homogeneous distribution of the particulates, a reduction of approximately 30%
of the density in relation to the aluminum matrix, having good wetting characteristics and total mechanical anchoring of the
balloons in the metallic matrix. The next step for future work is to carry out further tests to better determine the other
mechanical and physical properties present in the developed material.

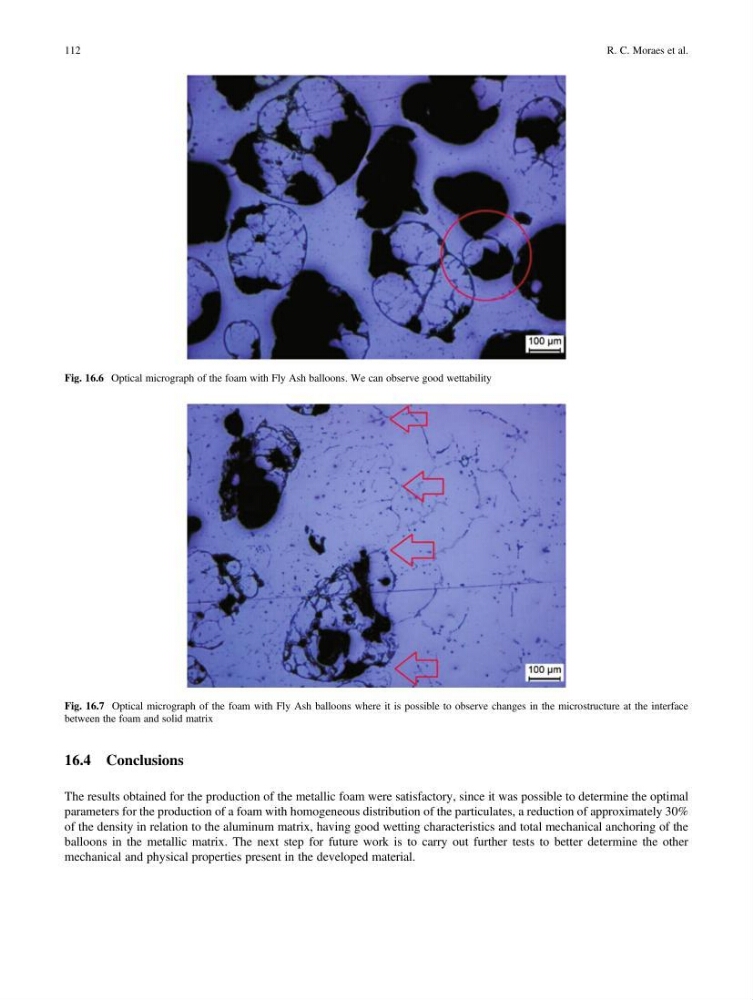

Fig. 16.6 Optical micrograph of the foam with Fly Ash balloons. We can observe good wettability
Fig. 16.7 Optical micrograph of the foam with Fly Ash balloons where it is possible to observe changes in the microstructure at the interface
between the foam and solid matrix
112
R. C. Moraes et al.
The results obtained for the production of the metallic foam were satisfactory, since it was possible to determine the optimal
parameters for the production of a foam with homogeneous distribution of the particulates, a reduction of approximately 30%
of the density in relation to the aluminum matrix, having good wetting characteristics and total mechanical anchoring of the
balloons in the metallic matrix. The next step for future work is to carry out further tests to better determine the other
mechanical and physical properties present in the developed material.
Fig. 16.6 Optical micrograph of the foam with Fly Ash balloons. We can observe good wettability
Fig. 16.7 Optical micrograph of the foam with Fly Ash balloons where it is possible to observe changes in the microstructure at the interface
between the foam and solid matrix
112
R. C. Moraes et al.
