11.4 Further Numerical Analyses and Discussion
391
0ms
0.8ms
0.4ms
1ms
2ms
5ms
10ms
0ms
0.8ms
0.4ms
1ms
2ms
5ms
10ms
(a)
(b)

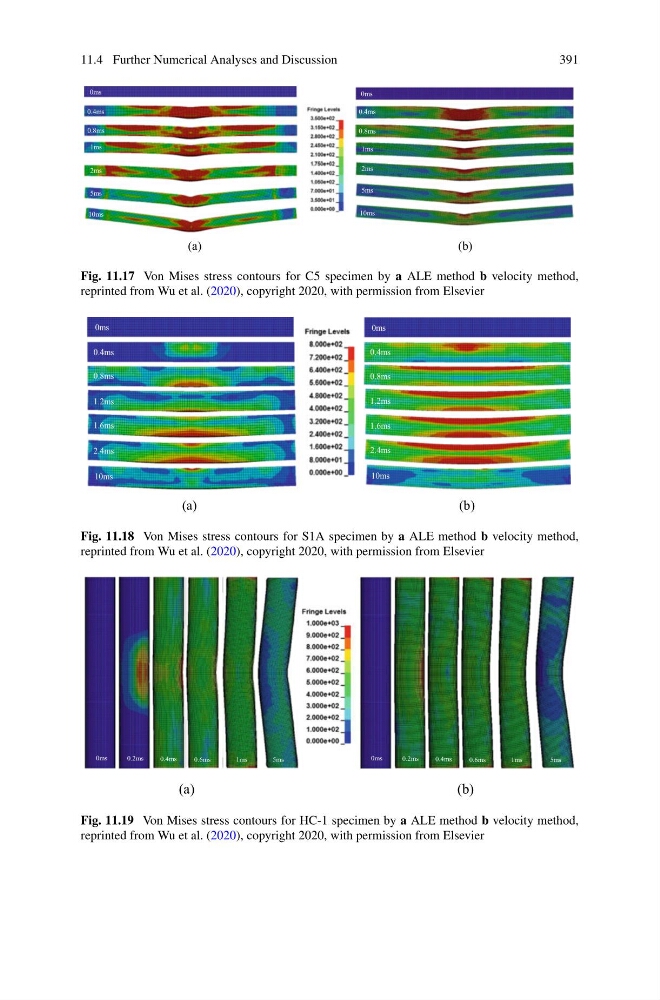

Fig. 11.17 Von Mises stress contours for C5 specimen by a ALE method b velocity method,
reprinted from Wu et al. (2020), copyright 2020, with permission from Elsevier
0ms
0.4ms
0.8ms
1.2ms
1.6ms
10ms
2.4ms
0ms
0.4ms
0.8ms
1.2ms
1.6ms
10ms
2.4ms
(a)
(b)
Fig. 11.18 Von Mises stress contours for S1A specimen by a ALE method b velocity method,
reprinted from Wu et al. (2020), copyright 2020, with permission from Elsevier
0ms
0.2ms
0.4ms
1ms
0.6ms
5ms
0ms
0.2ms
0.4ms
1ms
0.6ms
5ms
(a)
(b)
Fig. 11.19 Von Mises stress contours for HC-1 specimen by a ALE method b velocity method,
reprinted from Wu et al. (2020), copyright 2020, with permission from Elsevier
