7 Impact Resistance of Armor Steel/Ceramic/UHPCC Layered …
Projectile
UHPCC
500mm
Finite element
SPH particles domain
11mm
11 particles

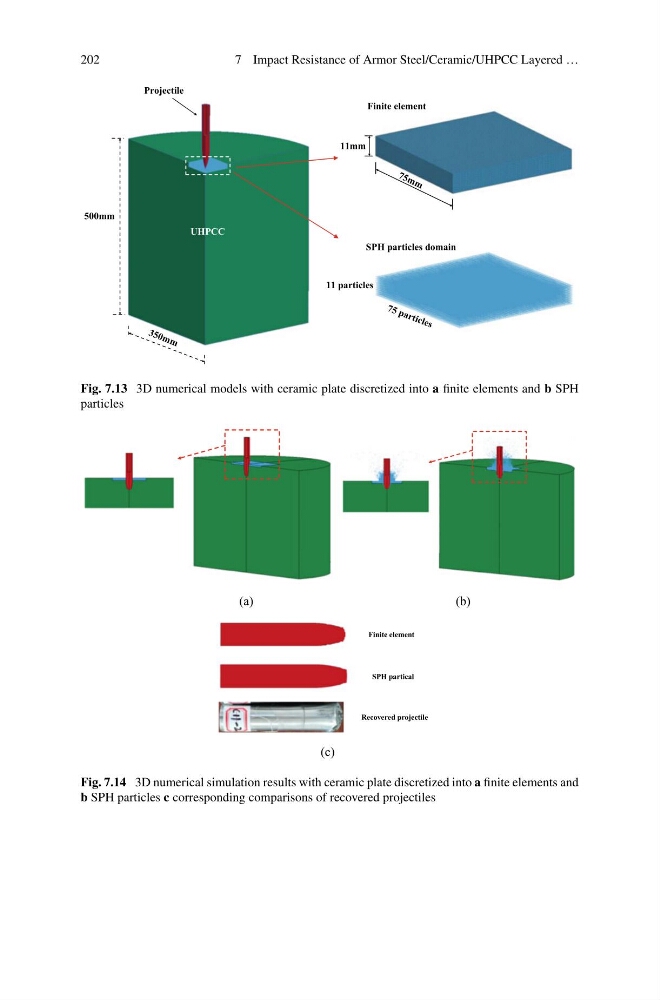

Fig. 7.13 3D numerical models with ceramic plate discretized into a finite elements and b SPH
particles
(a)
(b)
Finite element
SPH partical
Recovered projectile
(c)
Fig. 7.14 3D numerical simulation results with ceramic plate discretized into a finite elements and
b SPH particles c corresponding comparisons of recovered projectiles
