198
7 Impact Resistance of Armor Steel/Ceramic/UHPCC Layered …

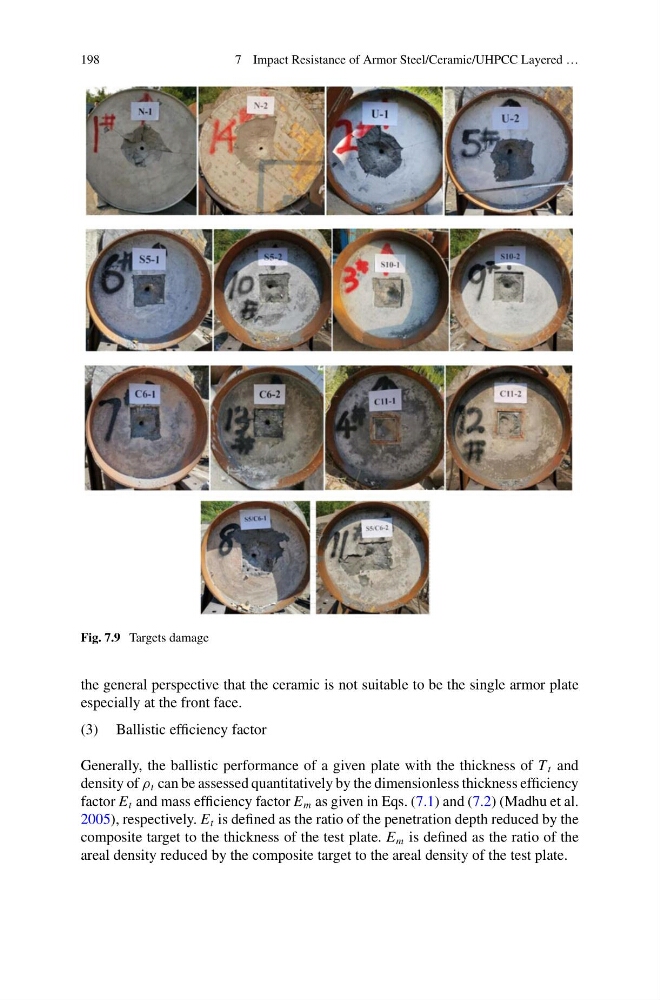

Fig. 7.9 Targets damage
the general perspective that the ceramic is not suitable to be the single armor plate
especially at the front face.
(3) Ballistic efficiency factor
Generally, the ballistic performance of a given plate with the thickness of T t and
density of ρ t can be assessed quantitatively by the dimensionless thickness efficiency
factor E t and mass efficiency factor E m as given in Eqs. (7.1) and (7.2) (Madhu et al.
2005), respectively. E t is defined as the ratio of the penetration depth reduced by the
composite target to the thickness of the test plate. E m is defined as the ratio of the
areal density reduced by the composite target to the areal density of the test plate.
7 Impact Resistance of Armor Steel/Ceramic/UHPCC Layered …
Fig. 7.9 Targets damage
the general perspective that the ceramic is not suitable to be the single armor plate
especially at the front face.
(3) Ballistic efficiency factor
Generally, the ballistic performance of a given plate with the thickness of T t and
density of ρ t can be assessed quantitatively by the dimensionless thickness efficiency
factor E t and mass efficiency factor E m as given in Eqs. (7.1) and (7.2) (Madhu et al.
2005), respectively. E t is defined as the ratio of the penetration depth reduced by the
composite target to the thickness of the test plate. E m is defined as the ratio of the
areal density reduced by the composite target to the areal density of the test plate.
