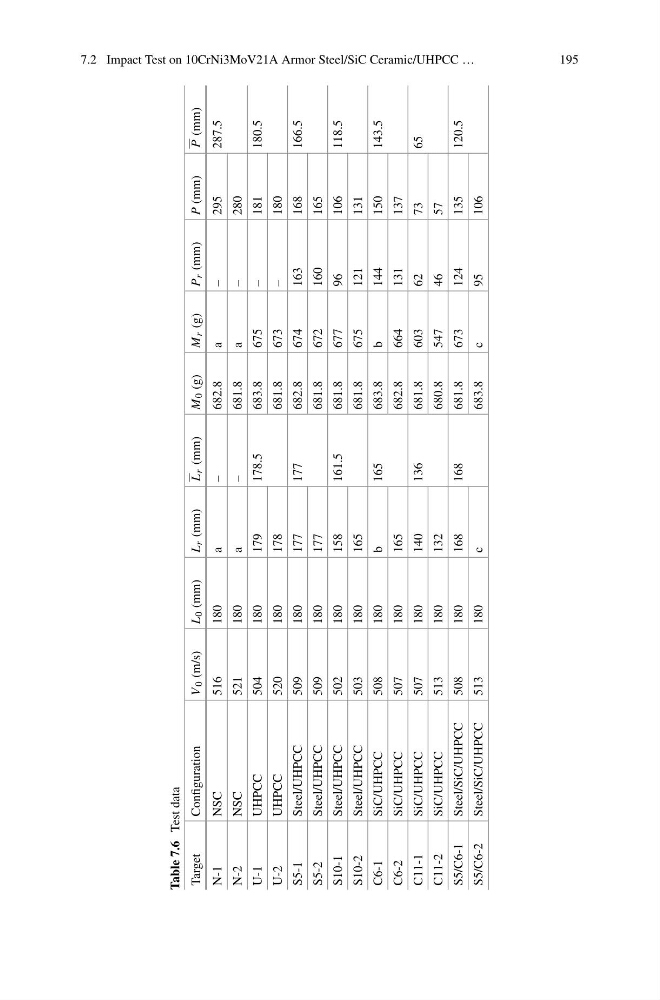

Table 7.6
Test data
Target
Configuration
V
0 (m/s)
L
0 (mm)
L
r (mm)
L
r (mm)
M
0 (g)
M
r (g)
P
r (mm)
P
(mm)
P
(mm)
N-1
NSC
516
180
a
–
682.8
a
–
295
287.5
N-2
NSC
521
180
a
–
681.8
a
–
280
U-1
UHPCC
504
180
179
178.5
683.8
675
–
181
180.5
U-2
UHPCC
520
180
178
681.8
673
–
180
S5-1
Steel/UHPCC
509
180
177
177
682.8
674
163
168
166.5
S5-2
Steel/UHPCC
509
180
177
681.8
672
160
165
S10-1
Steel/UHPCC
502
180
158
161.5
681.8
677
96
106
118.5
S10-2
Steel/UHPCC
503
180
165
681.8
675
121
131
C6-1
SiC/UHPCC
508
180
b
165
683.8
b
144
150
143.5
C6-2
SiC/UHPCC
507
180
165
682.8
664
131
137
C11-1
SiC/UHPCC
507
180
140
136
681.8
603
62
73
65
C11-2
SiC/UHPCC
513
180
132
680.8
547
46
57
S5/C6-1
Steel/SiC/UHPCC
508
180
168
168
681.8
673
124
135
120.5
S5/C6-2
Steel/SiC/UHPCC
513
180
c
683.8
c
95
106
