490
P. Jain and J. F. Xavier

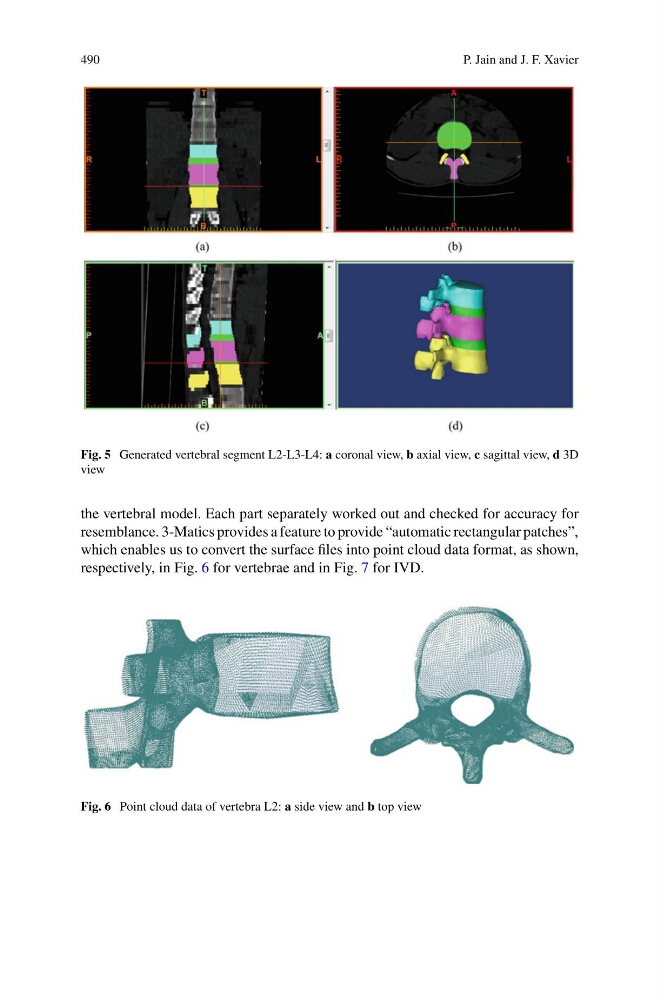

Fig. 5 Generated vertebral segment L2-L3-L4: a coronal view, b axial view, c sagittal view, d 3D
view
the vertebral model. Each part separately worked out and checked for accuracy for
resemblance. 3-Matics provides a feature to provide “automatic rectangular patches”,
which enables us to convert the surface files into point cloud data format, as shown,
respectively, in Fig. 6 for vertebrae and in Fig. 7 for IVD.
Fig. 6 Point cloud data of vertebra L2: a side view and b top view
