Design and Analysis of Circular and Square Arm …
471
Equivalent Stress Analysis.
Results of equivalent stress show that total maximum stress induced is comparatively
higher for carbon epoxy than the aramid followed by stainless steel for a robot
(Fig. 11).

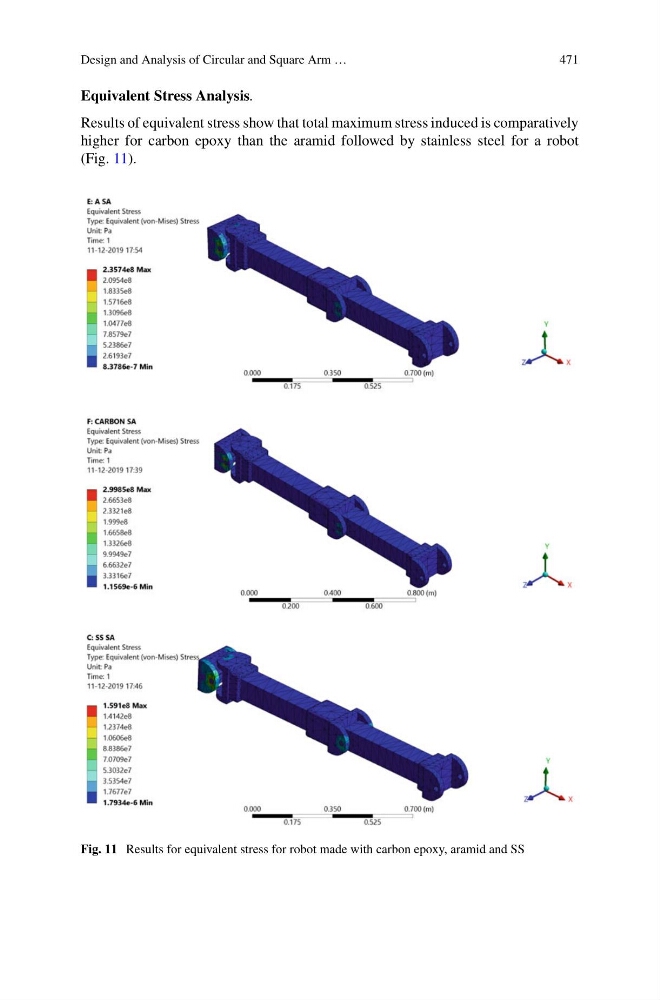

Fig. 11 Results for equivalent stress for robot made with carbon epoxy, aramid and SS
