Directional Deformation Analysis.
The total maximum directional deformation, which will occur in the circular arm
robot under maximum applicable load, is comparatively higher for aramid than the
carbon epoxy followed by stainless steel (Fig. 9).

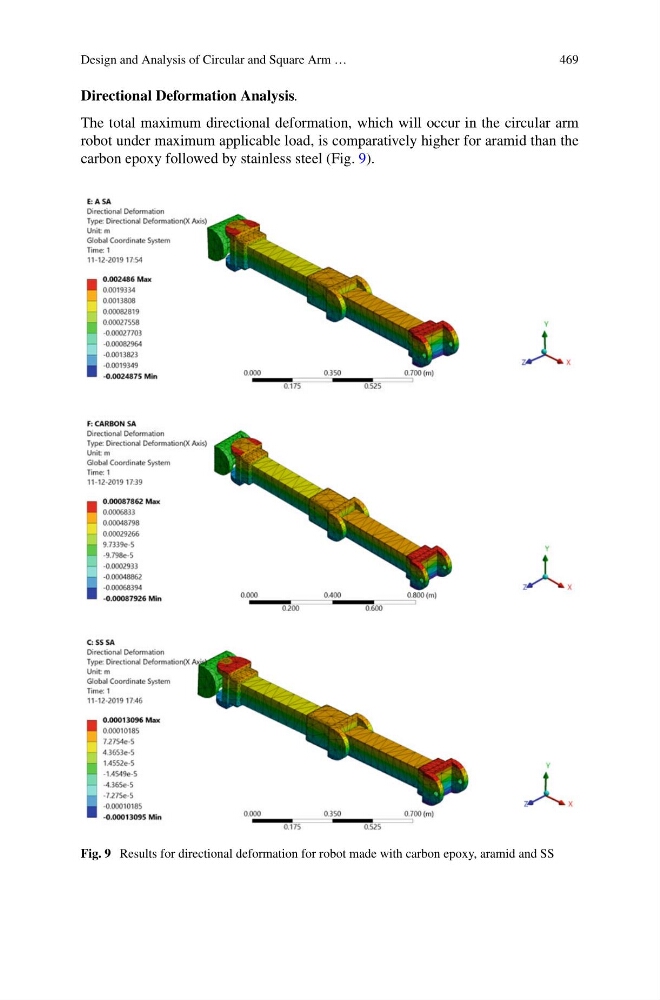

Fig. 9 Results for directional deformation for robot made with carbon epoxy, aramid and SS
