7.2 Analysis of Square Arm Robot
Total Deformation Analysis.
The total maximum deformation, which will occur in the circular arm robot under
maximum applicable load, is comparatively higher for aramid than the carbon epoxy
followed by stainless steel (Fig. 8).

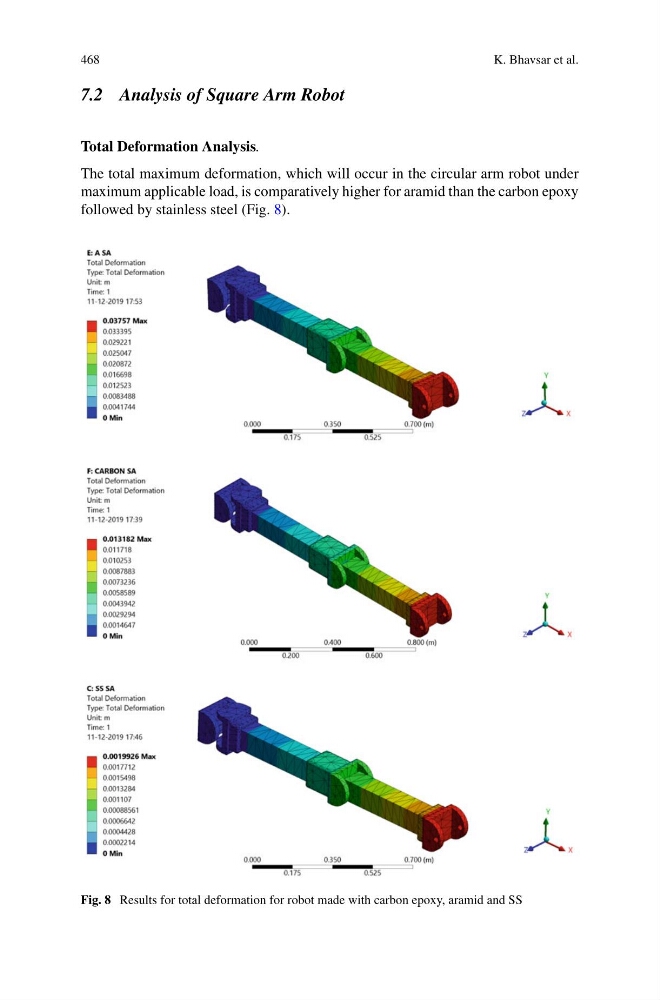

Fig. 8 Results for total deformation for robot made with carbon epoxy, aramid and SS
