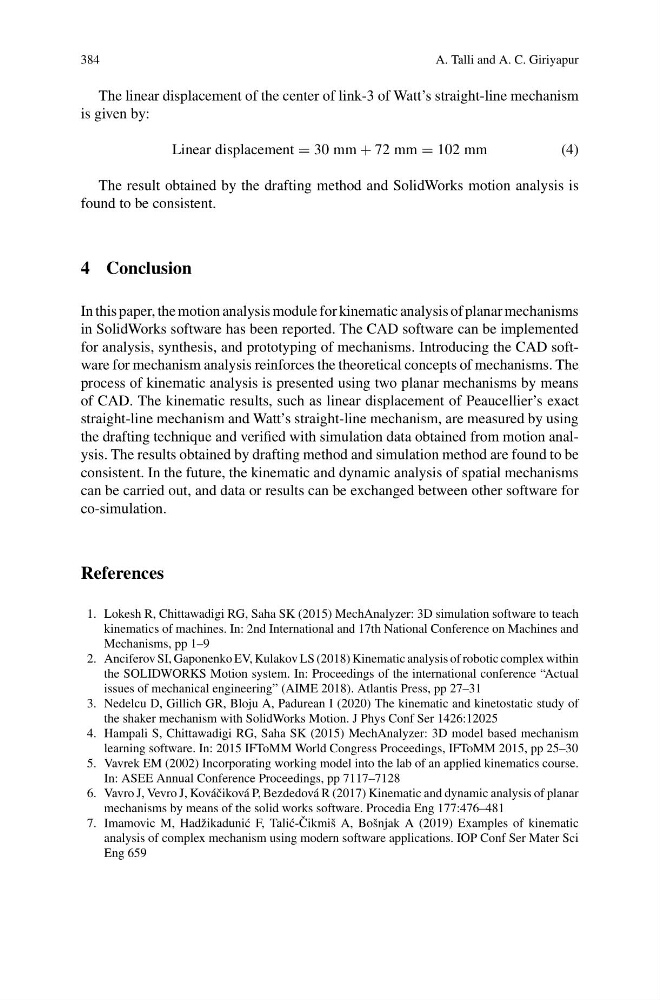

384
A. Talli and A. C. Giriyapur
The linear displacement of the center of link-3 of Watt’s straight-line mechanism
is given by:
Linear displacement = 30 mm + 72 mm = 102 mm
(4)
The result obtained by the drafting method and SolidWorks motion analysis is
found to be consistent.
4 Conclusion
In this paper, the motion analysis module for kinematic analysis of planar mechanisms
in SolidWorks software has been reported. The CAD software can be implemented
for analysis, synthesis, and prototyping of mechanisms. Introducing the CAD software for mechanism analysis reinforces the theoretical concepts of mechanisms. The
process of kinematic analysis is presented using two planar mechanisms by means
of CAD. The kinematic results, such as linear displacement of Peaucellier’s exact
straight-line mechanism and Watt’s straight-line mechanism, are measured by using
the drafting technique and verified with simulation data obtained from motion analysis. The results obtained by drafting method and simulation method are found to be
consistent. In the future, the kinematic and dynamic analysis of spatial mechanisms
can be carried out, and data or results can be exchanged between other software for
co-simulation.
References
1. Lokesh R, Chittawadigi RG, Saha SK (2015) MechAnalyzer: 3D simulation software to teach
kinematics of machines. In: 2nd International and 17th National Conference on Machines and
Mechanisms, pp 1–9
2. Anciferov SI, Gaponenko EV, Kulakov LS (2018) Kinematic analysis of robotic complex within
the SOLIDWORKS Motion system. In: Proceedings of the international conference “Actual
issues of mechanical engineering” (AIME 2018). Atlantis Press, pp 27–31
3. Nedelcu D, Gillich GR, Bloju A, Padurean I (2020) The kinematic and kinetostatic study of
the shaker mechanism with SolidWorks Motion. J Phys Conf Ser 1426:12025
4. Hampali S, Chittawadigi RG, Saha SK (2015) MechAnalyzer: 3D model based mechanism
learning software. In: 2015 IFToMM World Congress Proceedings, IFToMM 2015, pp 25–30
5. Vavrek EM (2002) Incorporating working model into the lab of an applied kinematics course.
In: ASEE Annual Conference Proceedings, pp 7117–7128
6. Vavro J, Vevro J, Kovᡠciková P, Bezdedová R (2017) Kinematic and dynamic analysis of planar
mechanisms by means of the solid works software. Procedia Eng 177:476–481
7. Imamovic M, Hadžikaduni´ c F, Tali´ c- ˇ
Cikmiš A, Bošnjak A (2019) Examples of kinematic
analysis of complex mechanism using modern software applications. IOP Conf Ser Mater Sci
Eng 659
