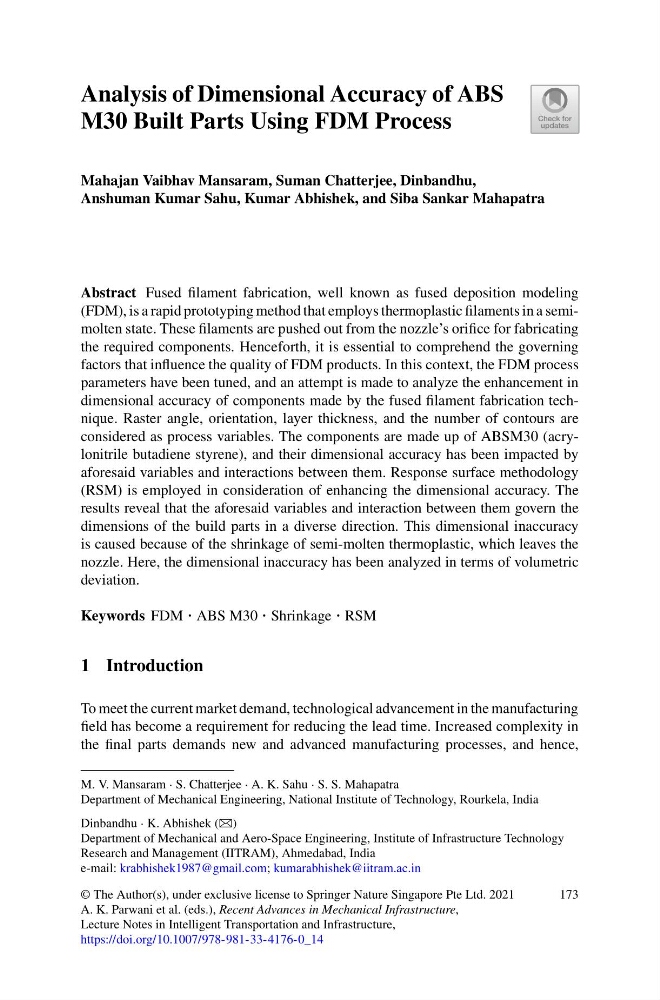

Analysis of Dimensional Accuracy of ABS
M30 Built Parts Using FDM Process
Mahajan Vaibhav Mansaram, Suman Chatterjee, Dinbandhu,
Anshuman Kumar Sahu, Kumar Abhishek, and Siba Sankar Mahapatra
Abstract Fused filament fabrication, well known as fused deposition modeling
(FDM), is a rapid prototyping method that employs thermoplastic filaments in a semimolten state. These filaments are pushed out from the nozzle’s orifice for fabricating
the required components. Henceforth, it is essential to comprehend the governing
factors that influence the quality of FDM products. In this context, the FDM process
parameters have been tuned, and an attempt is made to analyze the enhancement in
dimensional accuracy of components made by the fused filament fabrication technique. Raster angle, orientation, layer thickness, and the number of contours are
considered as process variables. The components are made up of ABSM30 (acrylonitrile butadiene styrene), and their dimensional accuracy has been impacted by
aforesaid variables and interactions between them. Response surface methodology
(RSM) is employed in consideration of enhancing the dimensional accuracy. The
results reveal that the aforesaid variables and interaction between them govern the
dimensions of the build parts in a diverse direction. This dimensional inaccuracy
is caused because of the shrinkage of semi-molten thermoplastic, which leaves the
nozzle. Here, the dimensional inaccuracy has been analyzed in terms of volumetric
deviation.
Keywords FDM · ABS M30 · Shrinkage · RSM
1 Introduction
To meet the current market demand, technological advancement in the manufacturing
field has become a requirement for reducing the lead time. Increased complexity in
the final parts demands new and advanced manufacturing processes, and hence,
M. V. Mansaram · S. Chatterjee · A. K. Sahu · S. S. Mahapatra
Department of Mechanical Engineering, National Institute of Technology, Rourkela, India
Dinbandhu · K. Abhishek (B)
Department of Mechanical and Aero-Space Engineering, Institute of Infrastructure Technology
Research and Management (IITRAM), Ahmedabad, India
e-mail: krabhishek1987@gmail.com; kumarabhishek@iitram.ac.in
© The Author(s), under exclusive license to Springer Nature Singapore Pte Ltd. 2021
A. K. Parwani et al. (eds.), Recent Advances in Mechanical Infrastructure,
Lecture Notes in Intelligent Transportation and Infrastructure,
https://doi.org/10.1007/978-981-33-4176-0_14
173
