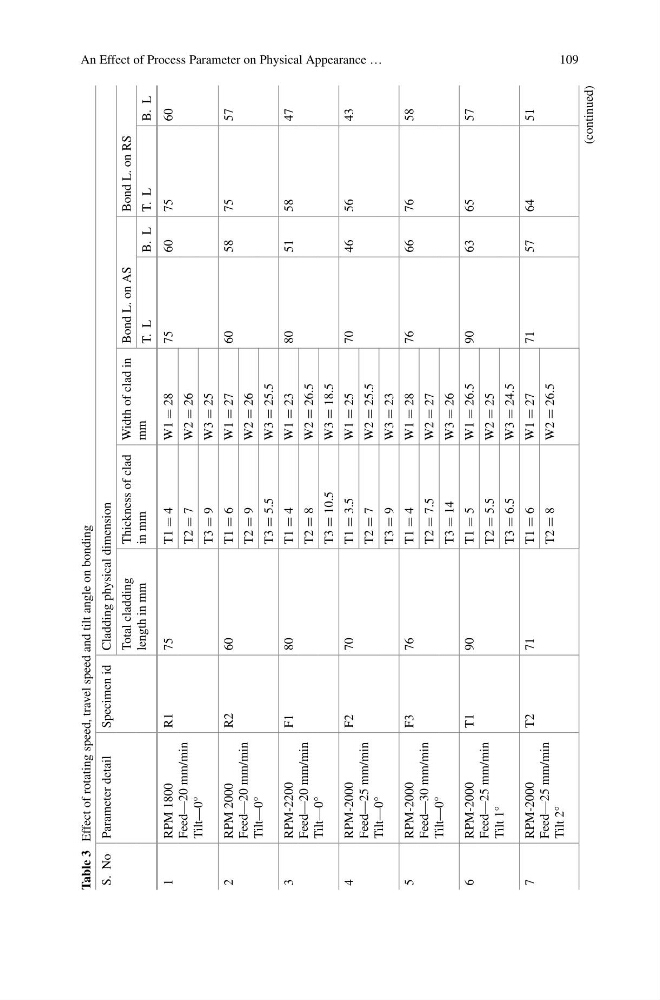

Table 3
Effect of rotating speed, travel speed and tilt angle on bonding
S. No Parameter detail
Specimen id Cladding physical dimension
Total cladding
length in mm
Thickness of clad
in mm
Width of clad in
mm
Bond L. on AS
Bond L. on RS
T. L
B. L T. L
B. L
1
RPM 1800
Feed—20 mm/min
Tilt—0°
R1
75
T1
= 4
W1
= 28
75
60
75
60
T2
= 7
W2
= 26
T3
= 9
W3
= 25
2
RPM 2000
Feed—20 mm/min
Tilt—0°
R2
60
T1
= 6
W1
= 27
60
58
75
57
T2
= 9
W2
= 26
T3
= 5.5
W3
= 25.5
3
RPM-2200
Feed—20 mm/min
Tilt—0°
F1
80
T1
= 4
W1
= 23
80
51
58
47
T2
= 8
W2
= 26.5
T3
= 10.5
W3
= 18.5
4
RPM-2000
Feed—25 mm/min
Tilt—0°
F2
70
T1
= 3.5
W1
= 25
70
46
56
43
T2
= 7
W2
= 25.5
T3
= 9
W3
= 23
5
RPM-2000
Feed—30 mm/min
Tilt—0°
F3
76
T1
= 4
W1
= 28
76
66
76
58
T2
= 7.5
W2
= 27
T3
= 14
W3
= 26
6
RPM-2000
Feed—25 mm/min
Tilt 1°
T1
90
T1
= 5
W1
= 26.5
90
63
65
57
T2
= 5.5
W2
= 25
T3
= 6.5
W3
= 24.5
7
RPM-2000
Feed—25 mm/min
Tilt 2°
T2
71
T1
= 6
W1
= 27
71
57
64
51
T2
= 8
W2
= 26.5
(continued)
