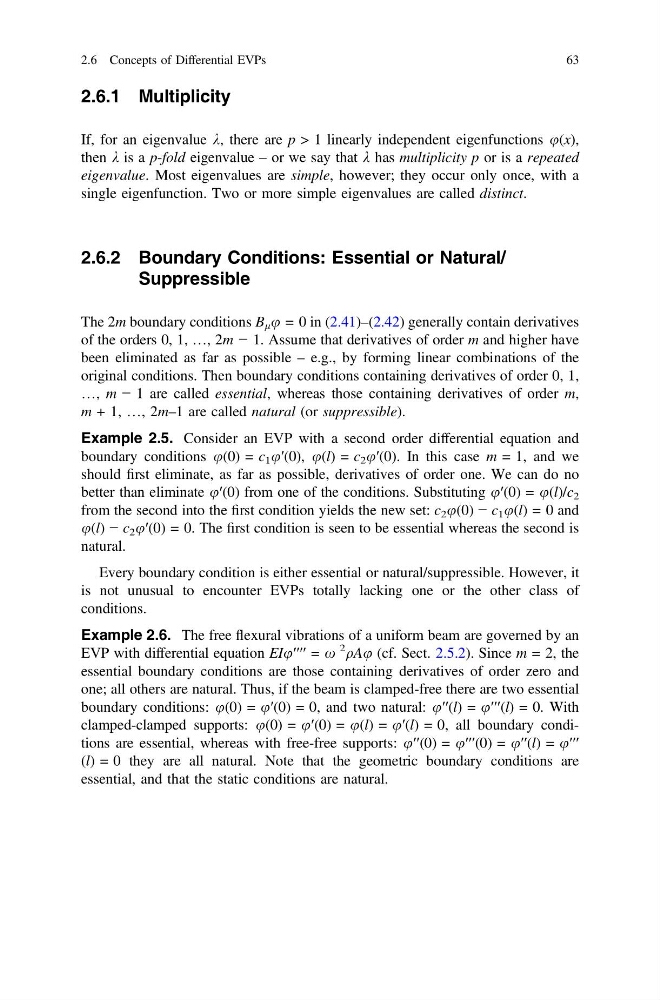

2.6.1 Multiplicity
If, for an eigenvalue k, there are p > 1 linearly independent eigenfunctions u(x),
then k is a p-fold eigenvalue – or we say that k has multiplicity p or is a repeated
eigenvalue. Most eigenvalues are simple, however; they occur only once, with a
single eigenfunction. Two or more simple eigenvalues are called distinct.
2.6.2 Boundary Conditions: Essential or Natural/
Suppressible
The 2m boundary conditions B l u = 0 in (2.41)–(2.42) generally contain derivatives
of the orders 0, 1, …, 2m − 1. Assume that derivatives of order m and higher have
been eliminated as far as possible – e.g., by forming linear combinations of the
original conditions. Then boundary conditions containing derivatives of order 0, 1,
…, m − 1 are called essential, whereas those containing derivatives of order m,
m + 1, …, 2m–1 are called natural (or suppressible).
Example 2.5. Consider an EVP with a second order differential equation and
boundary conditions u(0) = c 1 u′(0), u(l) = c 2 u′(0). In this case m = 1, and we
should first eliminate, as far as possible, derivatives of order one. We can do no
better than eliminate u′(0) from one of the conditions. Substituting u′(0) = u(l)/c 2
from the second into the first condition yields the new set: c 2 u(0) − c 1 u(l) = 0 and
u(l) − c 2 u′(0) = 0. The first condition is seen to be essential whereas the second is
natural.
Every boundary condition is either essential or natural/suppressible. However, it
is not unusual to encounter EVPs totally lacking one or the other class of
conditions.
Example 2.6. The free flexural vibrations of a uniform beam are governed by an
EVP with differential equation EIu′′′′ = x
2 qAu (cf. Sect. 2.5.2). Since m = 2, the
essential boundary conditions are those containing derivatives of order zero and
one; all others are natural. Thus, if the beam is clamped-free there are two essential
boundary conditions: u(0) = u′(0) = 0, and two natural: u′′(l) = u′′′(l) = 0. With
clamped-clamped supports: u(0) = u′(0) = u(l) = u′(l) = 0, all boundary conditions are essential, whereas with free-free supports: u′′(0) = u′′′(0) = u′′(l) = u′′′
(l) = 0 they are all natural. Note that the geometric boundary conditions are
essential, and that the static conditions are natural.
2.6 Concepts of Differential EVPs
63
