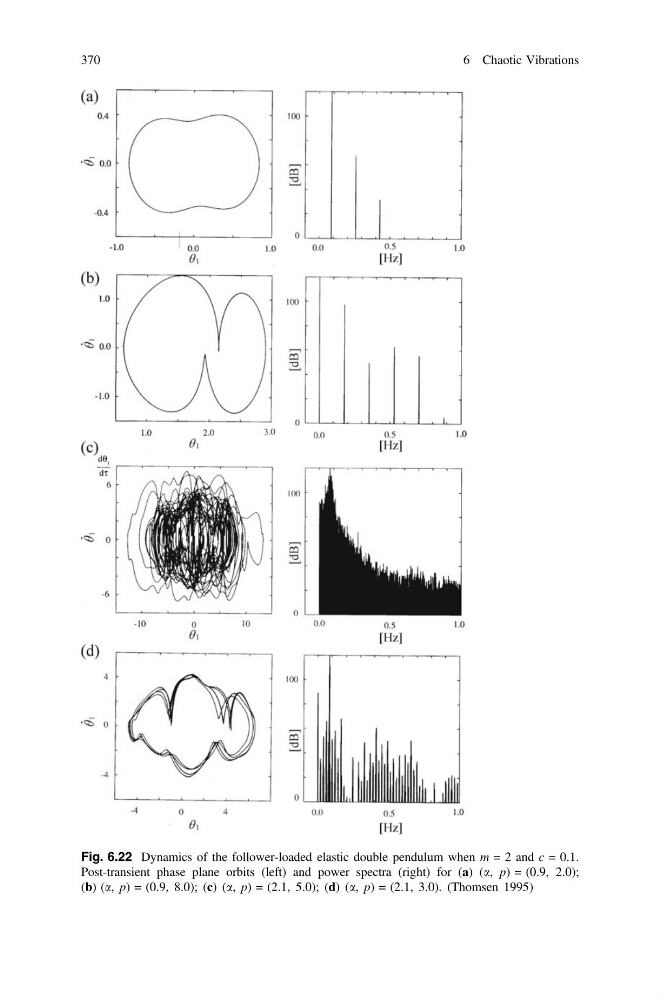

Fig. 6.22 Dynamics of the follower-loaded elastic double pendulum when m = 2 and c = 0.1.
Post-transient phase plane orbits (left) and power spectra (right) for (a) (a, p) = (0.9, 2.0);
(b) (a, p) = (0.9, 8.0); (c) (a, p) = (2.1, 5.0); (d) (a, p) = (2.1, 3.0). (Thomsen 1995)
