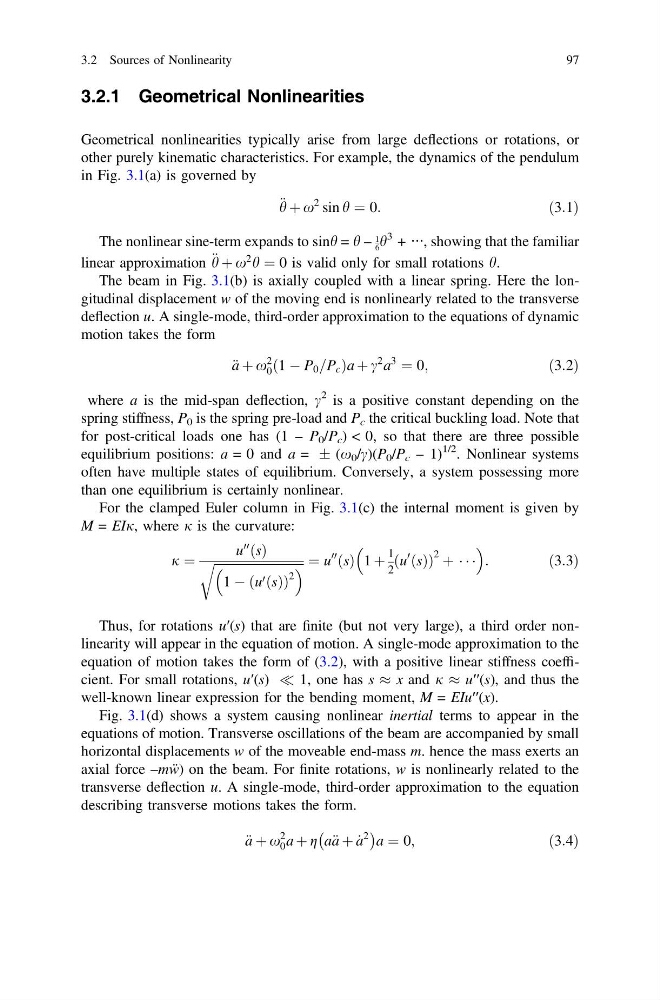

3.2.1 Geometrical Nonlinearities
Geometrical nonlinearities typically arise from large deflections or rotations, or
other purely kinematic characteristics. For example, the dynamics of the pendulum
in Fig. 3.1(a) is governed by
€ h þ x
2 sin h ¼ 0:
ð3:1Þ
The nonlinear sine-term expands to sinh = h –
1
6 h
3 + ⋯, showing that the familiar
linear approximation € h þ x
2 h ¼ 0 is valid only for small rotations h.
The beam in Fig. 3.1(b) is axially coupled with a linear spring. Here the longitudinal displacement w of the moving end is nonlinearly related to the transverse
deflection u. A single-mode, third-order approximation to the equations of dynamic
motion takes the form
€ a þ x
2
0 1 À P 0 =P c
ð
Þ a þ c
2 a
3
¼ 0;
ð3:2Þ
where a is the mid-span deflection, c
2 is a positive constant depending on the
spring stiffness, P 0 is the spring pre-load and P c the critical buckling load. Note that
for post-critical loads one has (1 – P 0 /P c ) < 0, so that there are three possible
equilibrium positions: a = 0 and a = ± (x 0 /c)(P 0 /P c – 1)
1/2 . Nonlinear systems
often have multiple states of equilibrium. Conversely, a system possessing more
than one equilibrium is certainly nonlinear.
For the clamped Euler column in Fig. 3.1(c) the internal moment is given by
M = EIj, where j is the curvature:
j ¼
u
00
ðsÞ
ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi
1 À u 0 ðsÞ
ð
Þ
2
r
¼ u
00
ðsÞ 1 þ
1
2
u
0
ðsÞ
ð
Þ
2 þ Á Á Á
:
ð3:3Þ
Thus, for rotations u′(s) that are finite (but not very large), a third order nonlinearity will appear in the equation of motion. A single-mode approximation to the
equation of motion takes the form of (3.2), with a positive linear stiffness coefficient. For small rotations, u′(s) ( 1, one has s % x and j % u′′(s), and thus the
well-known linear expression for the bending moment, M = EIu′′(x).
Fig. 3.1(d) shows a system causing nonlinear inertial terms to appear in the
equations of motion. Transverse oscillations of the beam are accompanied by small
horizontal displacements w of the moveable end-mass m. hence the mass exerts an
axial force –mẅ) on the beam. For finite rotations, w is nonlinearly related to the
transverse deflection u. A single-mode, third-order approximation to the equation
describing transverse motions takes the form.
€ a þ x
2
0 a þ g a€ a þ _
a
2
À
Á
a ¼ 0;
ð3:4Þ
