Velocity (m/s)
Time (us)
h=1, t=1, r=6
h=2, t=1, r=6
h=1, t=2, r=6
h=2, t=2, r=6
h=1, t=1, r=9
h=2, t=1, r=9
h=1, t=2, r=9
h=2, t=2, r=9

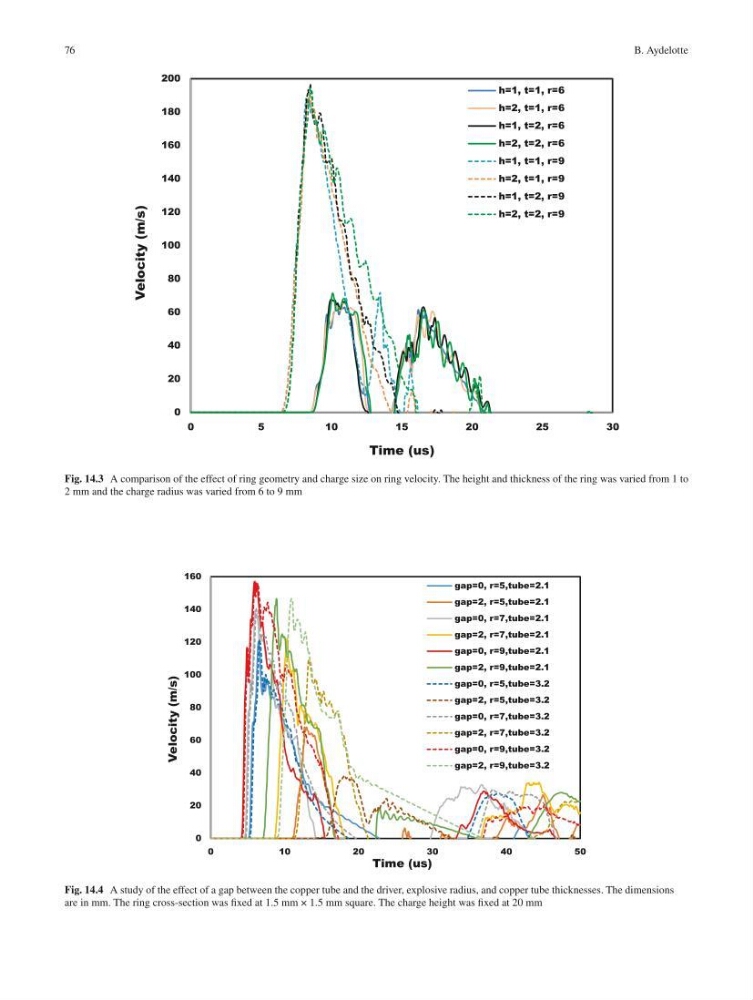

Fig. 14.3 A comparison of the effect of ring geometry and charge size on ring velocity. The height and thickness of the ring was varied from 1 to
2 mm and the charge radius was varied from 6 to 9 mm
0
20
40
60
80
100
120
140
160
0
1 0
2 0
3 0
4 0
5 0
Velocity (m/s)
Time (us)
gap=0, r=5,tube=2.1
gap=2, r=5,tube=2.1
gap=0, r=7,tube=2.1
gap=2, r=7,tube=2.1
gap=0, r=9,tube=2.1
gap=2, r=9,tube=2.1
gap=0, r=5,tube=3.2
gap=2, r=5,tube=3.2
gap=0, r=7,tube=3.2
gap=2, r=7,tube=3.2
gap=0, r=9,tube=3.2
gap=2, r=9,tube=3.2
Fig. 14.4 A study of the effect of a gap between the copper tube and the driver, explosive radius, and copper tube thicknesses. The dimensions
are in mm. The ring cross-section was fixed at 1.5 mm × 1.5 mm square. The charge height was fixed at 20 mm
