6 Mechanical characterization on sub-component level
(up to 40%). Images of the test setup are given in Figure 73. A more detailed analysis of
the experimental results is given in the following chapter as part of the proposed virtual
testing approach.

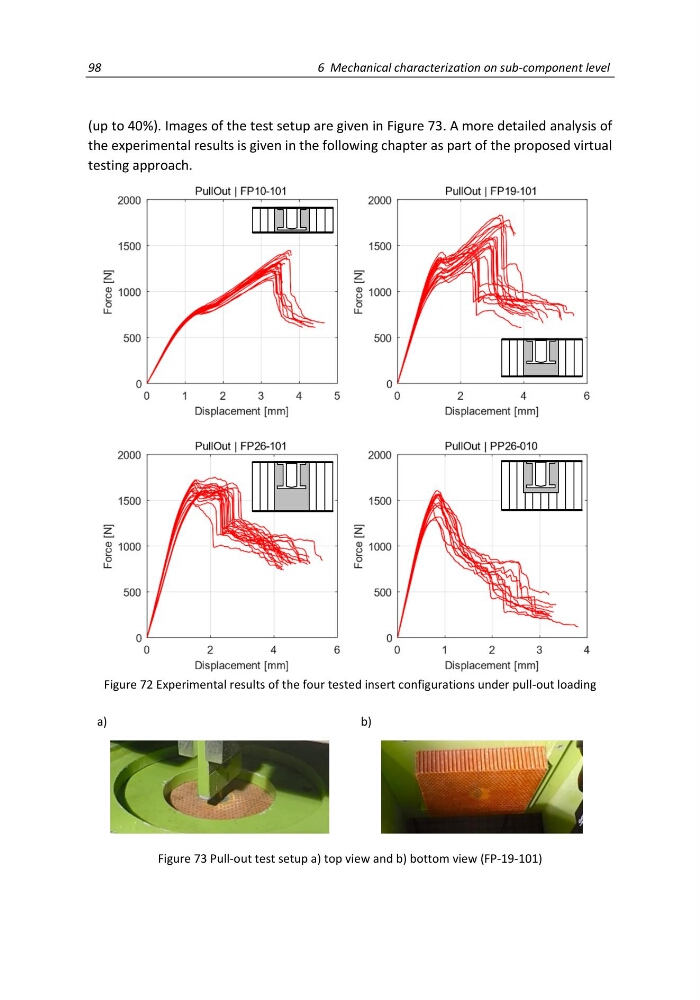

Figure 72 Experimental results of the four tested insert configurations under pull-out loading
a)
b)
Figure 73 Pull-out test setup a) top view and b) bottom view (FP-19-101)
