4 Computational Fluid Dynamics
321

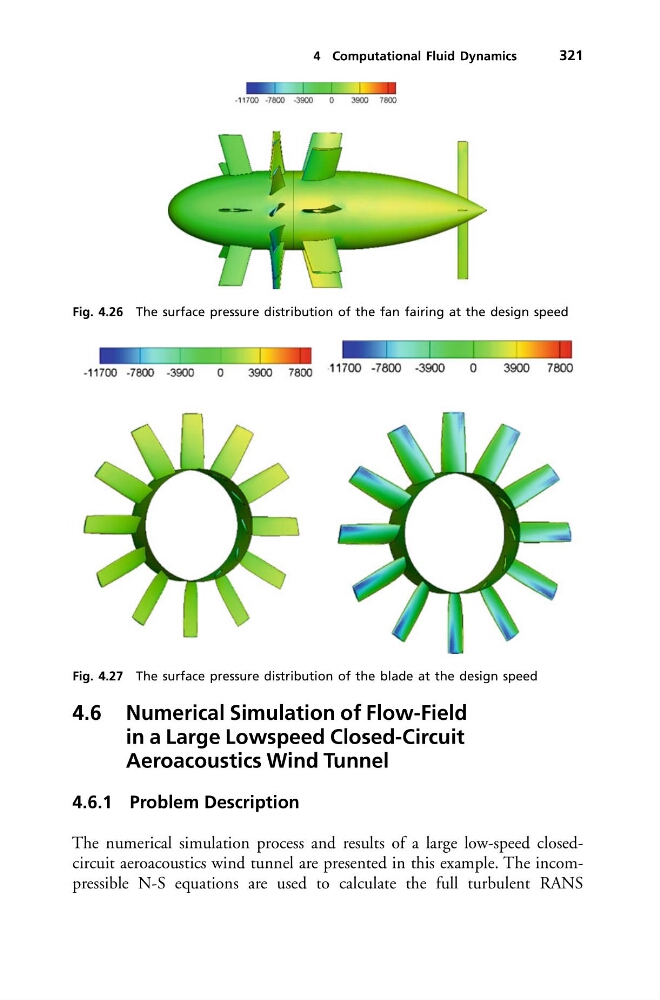

Fig. 4.26 The surface pressure distribution of the fan fairing at the design speed
Fig. 4.27 The surface pressure distribution of the blade at the design speed
4.6 Numerical Simulation of Flow-Field
in a Large Lowspeed Closed-Circuit
Aeroacoustics Wind Tunnel
4.6.1 Problem Description
The numerical simulation process and results of a large low-speed closedcircuit aeroacoustics wind tunnel are presented in this example. The incompressible N-S equations are used to calculate the full turbulent RANS
