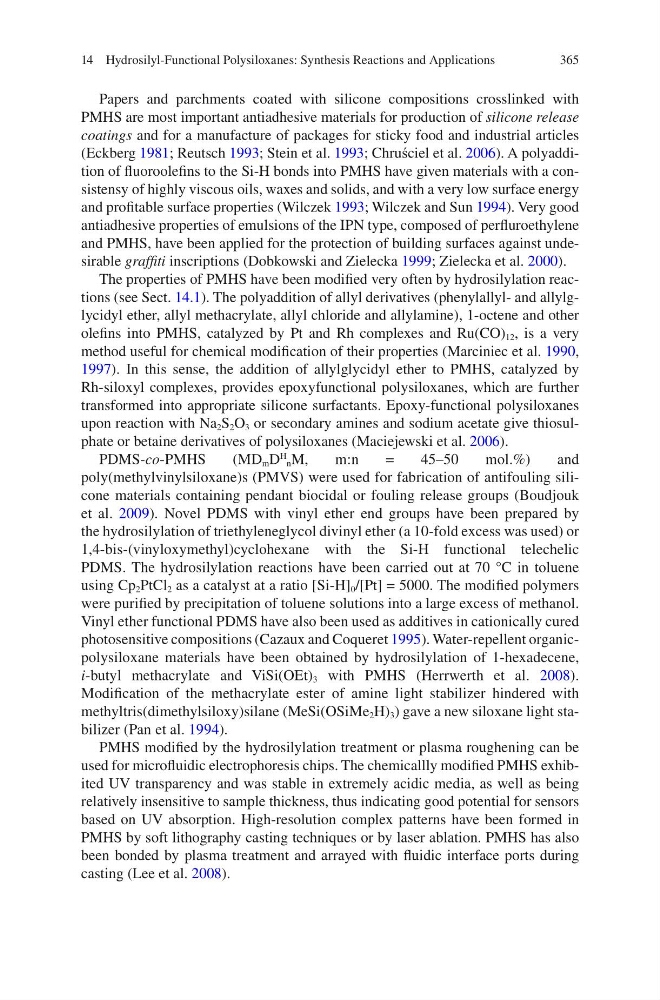

365
Papers and parchments coated with silicone compositions crosslinked with
PMHS are most important antiadhesive materials for production of silicone release
coatings and for a manufacture of packages for sticky food and industrial articles
(Eckberg 1981; Reutsch 1993; Stein et al. 1993; Chruściel et al. 2006). A polyaddition of fluoroolefins to the Si-H bonds into PMHS have given materials with a consistensy of highly viscous oils, waxes and solids, and with a very low surface energy
and profitable surface properties (Wilczek 1993; Wilczek and Sun 1994). Very good
antiadhesive properties of emulsions of the IPN type, composed of perfluroethylene
and PMHS, have been applied for the protection of building surfaces against undesirable graffiti inscriptions (Dobkowski and Zielecka 1999; Zielecka et al. 2000).
The properties of PMHS have been modified very often by hydrosilylation reactions (see Sect. 14.1). The polyaddition of allyl derivatives (phenylallyl- and allylglycidyl ether, allyl methacrylate, allyl chloride and allylamine), 1-octene and other
olefins into PMHS, catalyzed by Pt and Rh complexes and Ru(CO) 12 , is a very
method useful for chemical modification of their properties (Marciniec et al. 1990,
1997). In this sense, the addition of allylglycidyl ether to PMHS, catalyzed by
Rh-siloxyl complexes, provides epoxyfunctional polysiloxanes, which are further
transformed into appropriate silicone surfactants. Epoxy-functional polysiloxanes
upon reaction with Na 2 S 2 O 3 or secondary amines and sodium acetate give thiosulphate or betaine derivatives of polysiloxanes (Maciejewski et al. 2006).
PDMS-co-PMHS
(MD m D
H n M,
m:n
=
45–50
mol.%)
and
poly(methylvinylsiloxane)s (PMVS) were used for fabrication of antifouling silicone materials containing pendant biocidal or fouling release groups (Boudjouk
et al. 2009). Novel PDMS with vinyl ether end groups have been prepared by
the hydrosilylation of triethyleneglycol divinyl ether (a 10-fold excess was used) or
1,4-bis-(vinyloxymethyl)cyclohexane with the Si-H functional telechelic
PDMS. The hydrosilylation reactions have been carried out at 70 °C in toluene
using Cp 2 PtCl 2 as a catalyst at a ratio [Si-H] 0 /[Pt] = 5000. The modified polymers
were purified by precipitation of toluene solutions into a large excess of methanol.
Vinyl ether functional PDMS have also been used as additives in cationically cured
photosensitive compositions (Cazaux and Coqueret 1995). Water-repellent organicpolysiloxane materials have been obtained by hydrosilylation of 1-hexadecene,
i-butyl methacrylate and ViSi(OEt) 3 with PMHS (Herrwerth et al. 2008).
Modification of the methacrylate ester of amine light stabilizer hindered with
methyltris(dimethylsiloxy)silane (MeSi(OSiMe 2 H) 3 ) gave a new siloxane light stabilizer (Pan et al. 1994).
PMHS modified by the hydrosilylation treatment or plasma roughening can be
used for microfluidic electrophoresis chips. The chemicallly modified PMHS exhibited UV transparency and was stable in extremely acidic media, as well as being
relatively insensitive to sample thickness, thus indicating good potential for sensors
based on UV absorption. High-resolution complex patterns have been formed in
PMHS by soft lithography casting techniques or by laser ablation. PMHS has also
been bonded by plasma treatment and arrayed with fluidic interface ports during
casting (Lee et al. 2008).
14 Hydrosilyl-Functional Polysiloxanes: Synthesis Reactions and Applications
Papers and parchments coated with silicone compositions crosslinked with
PMHS are most important antiadhesive materials for production of silicone release
coatings and for a manufacture of packages for sticky food and industrial articles
(Eckberg 1981; Reutsch 1993; Stein et al. 1993; Chruściel et al. 2006). A polyaddition of fluoroolefins to the Si-H bonds into PMHS have given materials with a consistensy of highly viscous oils, waxes and solids, and with a very low surface energy
and profitable surface properties (Wilczek 1993; Wilczek and Sun 1994). Very good
antiadhesive properties of emulsions of the IPN type, composed of perfluroethylene
and PMHS, have been applied for the protection of building surfaces against undesirable graffiti inscriptions (Dobkowski and Zielecka 1999; Zielecka et al. 2000).
The properties of PMHS have been modified very often by hydrosilylation reactions (see Sect. 14.1). The polyaddition of allyl derivatives (phenylallyl- and allylglycidyl ether, allyl methacrylate, allyl chloride and allylamine), 1-octene and other
olefins into PMHS, catalyzed by Pt and Rh complexes and Ru(CO) 12 , is a very
method useful for chemical modification of their properties (Marciniec et al. 1990,
1997). In this sense, the addition of allylglycidyl ether to PMHS, catalyzed by
Rh-siloxyl complexes, provides epoxyfunctional polysiloxanes, which are further
transformed into appropriate silicone surfactants. Epoxy-functional polysiloxanes
upon reaction with Na 2 S 2 O 3 or secondary amines and sodium acetate give thiosulphate or betaine derivatives of polysiloxanes (Maciejewski et al. 2006).
PDMS-co-PMHS
(MD m D
H n M,
m:n
=
45–50
mol.%)
and
poly(methylvinylsiloxane)s (PMVS) were used for fabrication of antifouling silicone materials containing pendant biocidal or fouling release groups (Boudjouk
et al. 2009). Novel PDMS with vinyl ether end groups have been prepared by
the hydrosilylation of triethyleneglycol divinyl ether (a 10-fold excess was used) or
1,4-bis-(vinyloxymethyl)cyclohexane with the Si-H functional telechelic
PDMS. The hydrosilylation reactions have been carried out at 70 °C in toluene
using Cp 2 PtCl 2 as a catalyst at a ratio [Si-H] 0 /[Pt] = 5000. The modified polymers
were purified by precipitation of toluene solutions into a large excess of methanol.
Vinyl ether functional PDMS have also been used as additives in cationically cured
photosensitive compositions (Cazaux and Coqueret 1995). Water-repellent organicpolysiloxane materials have been obtained by hydrosilylation of 1-hexadecene,
i-butyl methacrylate and ViSi(OEt) 3 with PMHS (Herrwerth et al. 2008).
Modification of the methacrylate ester of amine light stabilizer hindered with
methyltris(dimethylsiloxy)silane (MeSi(OSiMe 2 H) 3 ) gave a new siloxane light stabilizer (Pan et al. 1994).
PMHS modified by the hydrosilylation treatment or plasma roughening can be
used for microfluidic electrophoresis chips. The chemicallly modified PMHS exhibited UV transparency and was stable in extremely acidic media, as well as being
relatively insensitive to sample thickness, thus indicating good potential for sensors
based on UV absorption. High-resolution complex patterns have been formed in
PMHS by soft lithography casting techniques or by laser ablation. PMHS has also
been bonded by plasma treatment and arrayed with fluidic interface ports during
casting (Lee et al. 2008).
14 Hydrosilyl-Functional Polysiloxanes: Synthesis Reactions and Applications
